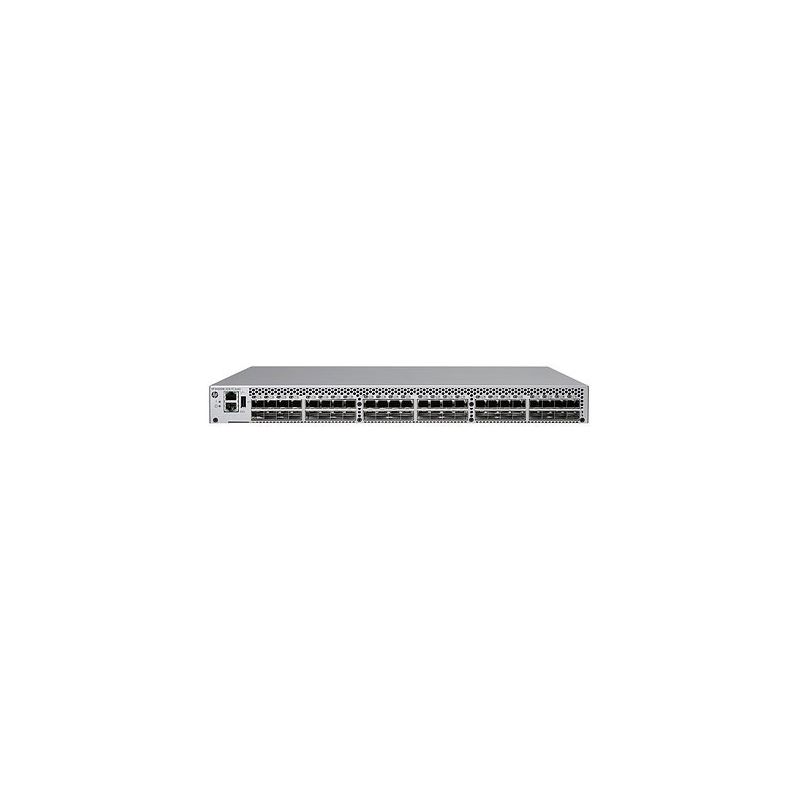

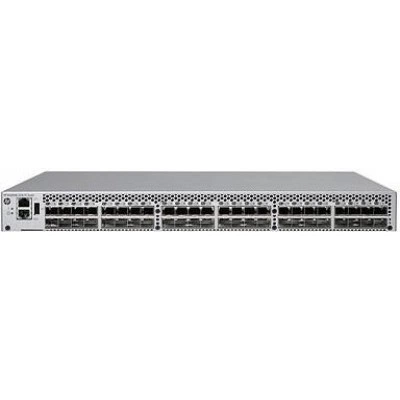

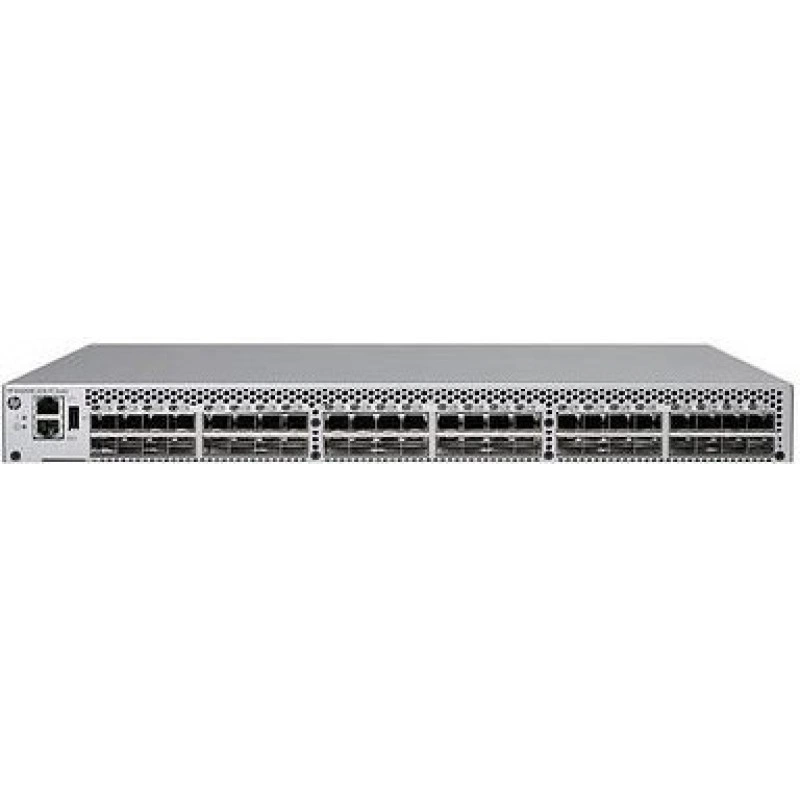

QR481B - Коммутатор HP SN6000B 16Gb 48/48 Pwr Pck + FC

Dimensions & Weight

Depth

16.9 in

Height

17.4 in

Weight

20.19 lbs

Width

17.2 in

Environmental Parameters

Humidity Range Operating

10 - 85% (non-condensing)

Max Operating Temperature

104 °F

Max Storage Temperature

158 °F

Min Operating Temperature

32 °F

Min Storage Temperature

-13 °F

Expansion / Connectivity

Interfaces

1 x 100Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x USB Type A ¦ 48 x SFP+ - SFP+

General

Device Type

Switch - 48 ports - managed

Enclosure Type

Rack-mountable 1U

Encryption Algorithm

256-bit AES

Features

ISL support, Syslog support, manageable, back to front airflow

Ports

48 x 16Gb Fibre Channel SFP+

Remote Management Protocol

SNMP 1, SNMP 3, HTTP, SMI-S, SSH, CLI

Subtype

Fibre Channel

Manufacturer Warranty

Service & Support

Limited warranty - parts and labor - 1 year - on-site

Miscellaneous

Cables Included

1 x serial cable

Compliant Standards

RoHS2

Manufacturer Selling Program

HPE Complete

Rack Mounting Kit

Included

Power

Installed Qty

2 (installed) / 2 (max)

Power Device

Internal power supply - hot-plug

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V (50/60 Hz)

Software / System Requirements

Software Included

Brocade Advanced Zoning, Brocade Fabric Watch, Brocade Advanced Performance Monitoring, Brocade Extended Fabrics, Brocade ISL Trunking, Brocade Advanced Web Tools, Brocade Adaptive Networking, HP SAN Network Advisor Professional, HP Server Application Optimization, Brocade EZ Switch
