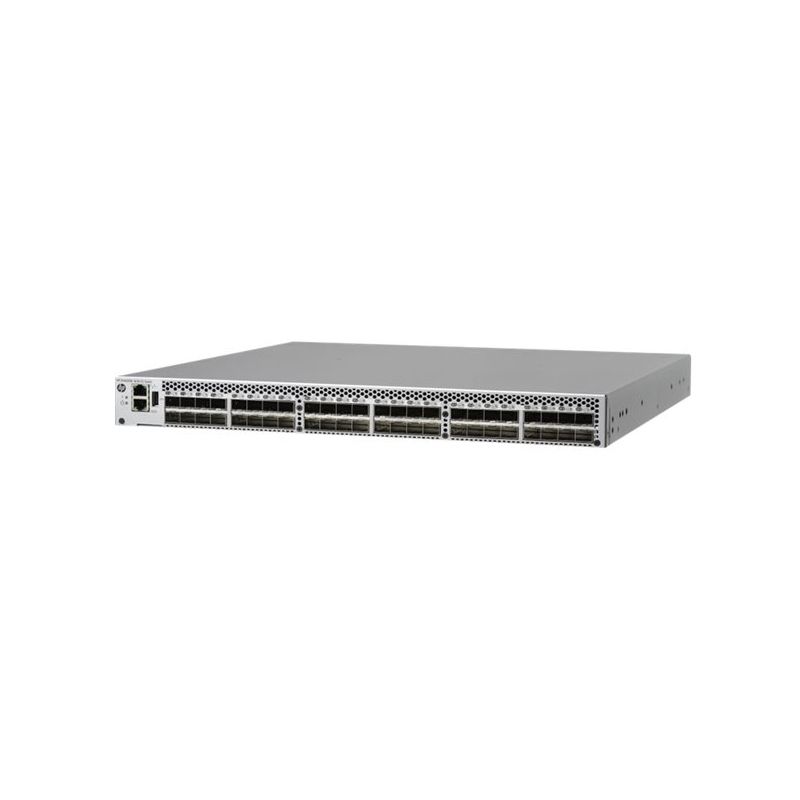

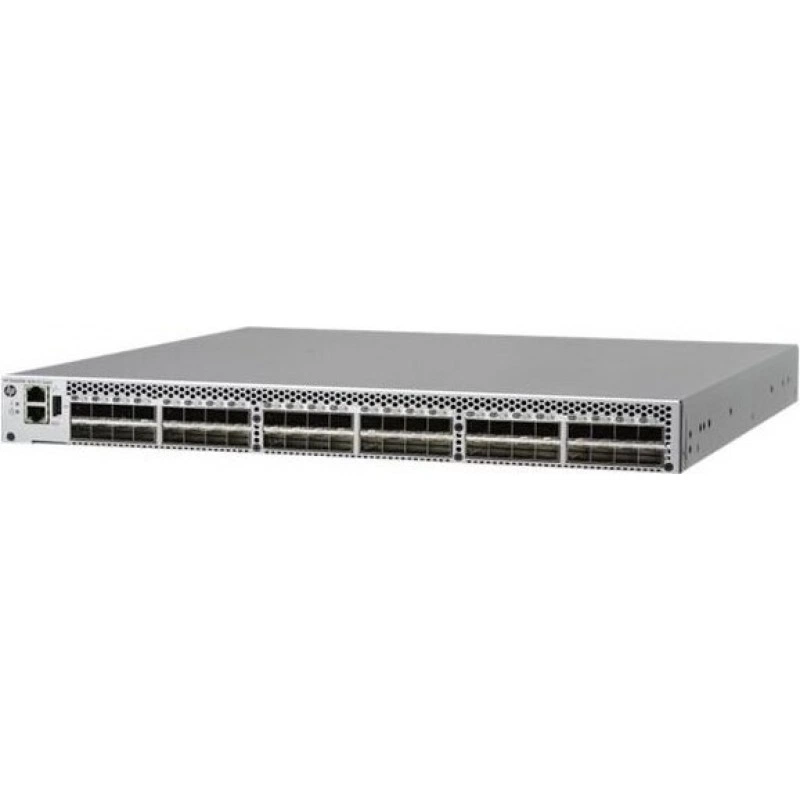

QK753B - Коммутатор HP SN6000B 16 Гбит / с 48/24 FC

Dimensions & Weight

Depth

17.4 in

Height

16.9 in

Weight

20.19 lbs

Width

17.2 in

Environmental Parameters

Humidity Range Operating

10 - 85% (non-condensing)

Max Operating Temperature

104 °F

Max Storage Temperature

158 °F

Min Operating Temperature

32 °F

Min Storage Temperature

-13 °F

Header

Brand

HPE

Compatibility

PC

Manufacturer

HP CTO Server Avnet

Model

SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch

Packaged Quantity

1

Product Line

HPE

Interface Provided

Comments

Management

Connector Type

Type A

Interface

Ethernet 10Base-T/100Base-TX

Qty

24

Type

USB

Miscellaneous

Compliant Standards

APM, RoHS, VESA FDMI

Encryption Algorithm

256-bit AES

Height (Rack Units)

1

Manufacturer Selling Program

HPE Complete

Rack Mounting Kit

Included

Networking

Features

EZ Switch, ISL support, Manageable, Syslog support

Form Factor

Rack-mountable

Manageable

Yes

Ports Qty

24

Remote Management Protocol

CLI, HTTP, SMI-S, SNMP 1, SNMP 3, SSH

Subcategory

Fibre Channel and SAN

Subtype

Fibre Channel

Type

Switch

Performance

Type

Bandwidth

Value

768 Gbps

Ports

Qty

24

Type

16Gb Fibre Channel SFP+

Power Device

Frequency Required

50/60 Hz

Hot-Plug

Hot-plug

Installed Qty

2

Max Supported Qty

2

Nominal Voltage

AC 120/230 V

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Type

Internal power supply

Software

Type

Brocade Advanced Web Tools, Brocade Advanced Zoning, Brocade EZ Switch, HP SAN Network Advisor Professional, HP Server Application Optimization
