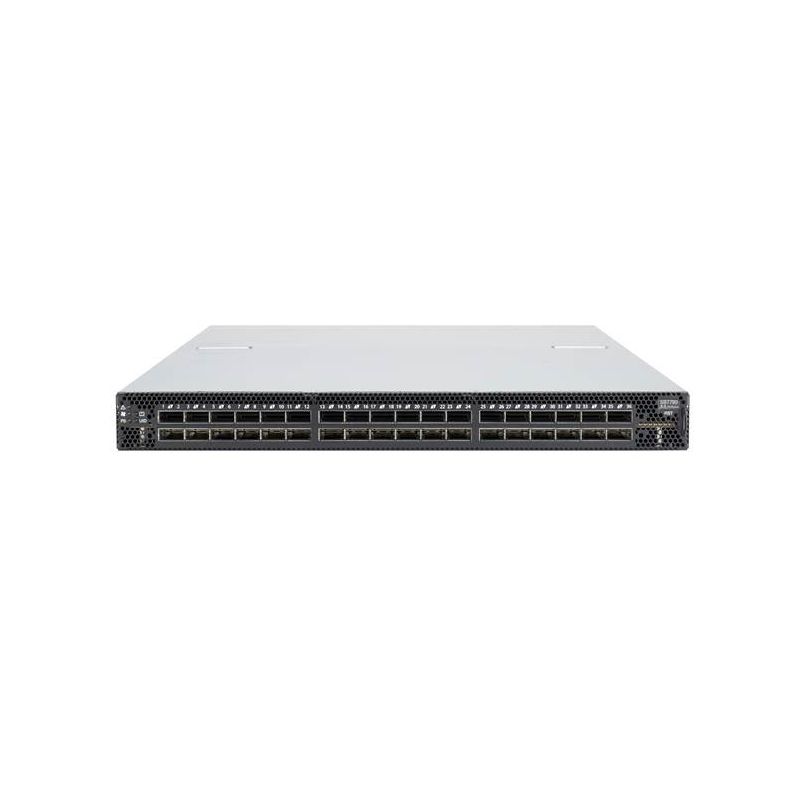

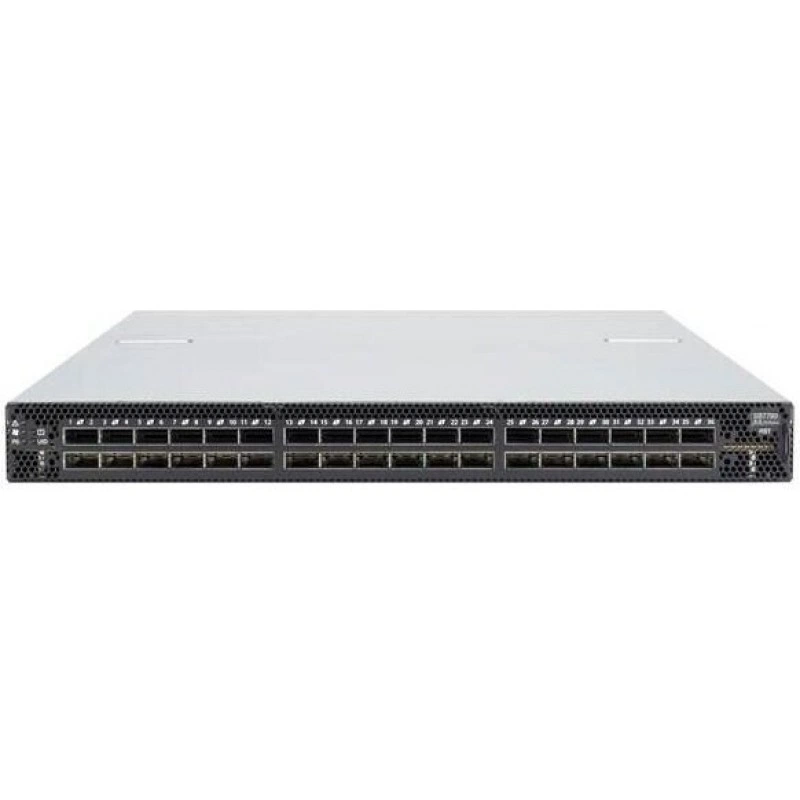

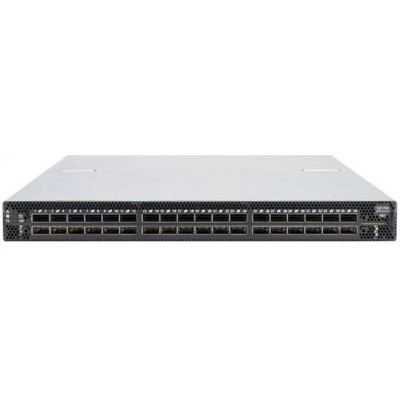

834979-B22 - Управляемый коммутатор Mellanox IB EDR v2 36p RAF

Dimensions & Weight

Depth

27 in

Height

1.7 in

Weight

24.25 lbs

Width

16.8 in

Environmental Parameters

Humidity Range Operating

5 - 95%

Max Operating Temperature

113 °F

Max Storage Temperature

158 °F

Min Operating Temperature

32 °F

Min Storage Temperature

-40 °F

Expansion / Connectivity

Interfaces

36 x EDR InfiniBand QSFP28 ¦ 1 x management ¦ 1 x USB ¦ 1 x serial (RS-232) DB-9 ¦ 2 x Gigabit LAN

General

Capacity

Forwarding table entries (Multicast): 16384

Compliant Standards

IBTA 1.21, IBTA 1.3

Device Type

Switch - 36 ports - managed

Enclosure Type

Rack-mountable 1U

Features

Port mirroring, back to front airflow, InfiniBand FDR Link support, adaptive routing, non blocking ports, hot swappable fan, InfiniBand EDR Link support, Co-Design Scalable Hierarchical Aggregation Protocol (SHArP) technology

Performance

Port-to-port latency: 90 ns ¦ Aggregate bandwidth: 7 Tbps

Ports

36 x EDR InfiniBand 100 Gigabit QSFP28

Subtype

InfiniBand

Manufacturer Warranty

Service & Support

Limited warranty - parts and labor - 3 years - response time: next business day

Miscellaneous

Compliant Standards

FCC Class A certified, VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC, RoHS, ICES, EN55024 Class A, ICES Class A, ISO 7779, ETS 300 753, VCCI Class A, AS/NZS CISPR 22, EN 61000-3-2 Class A, EN 61000-3-3 Class A, EN 55022 Class A, KN35, KCC KN32 Class A

Included Accessories

Rack mount kit

Power

Installed Qty

2 (installed) / 2 (max)

Power Device

Internal power supply - hot-plug

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V (50 - 60 Hz)
