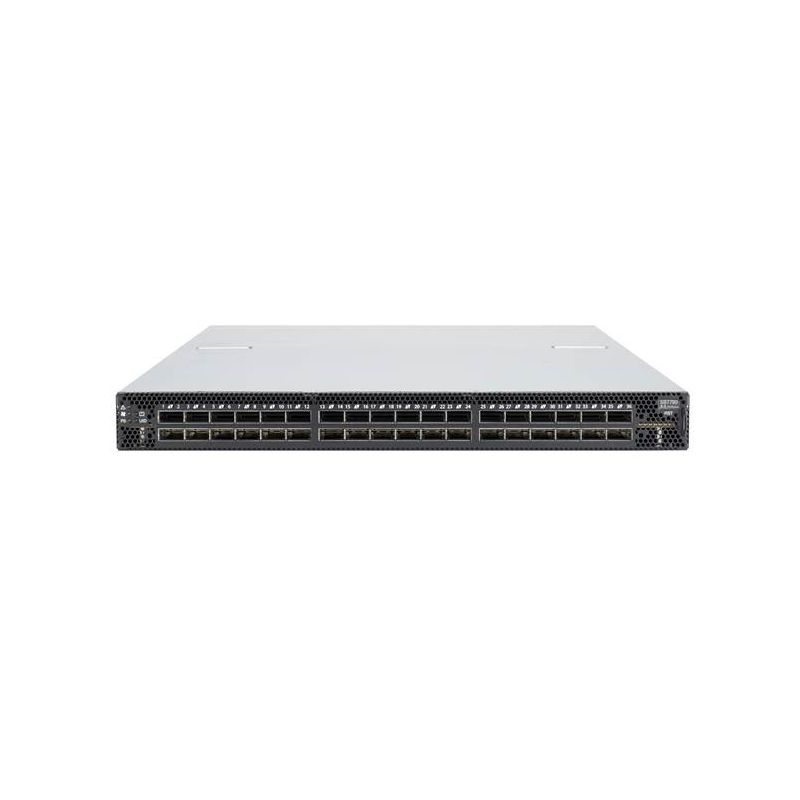

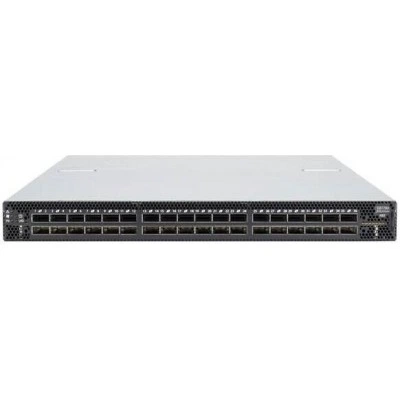

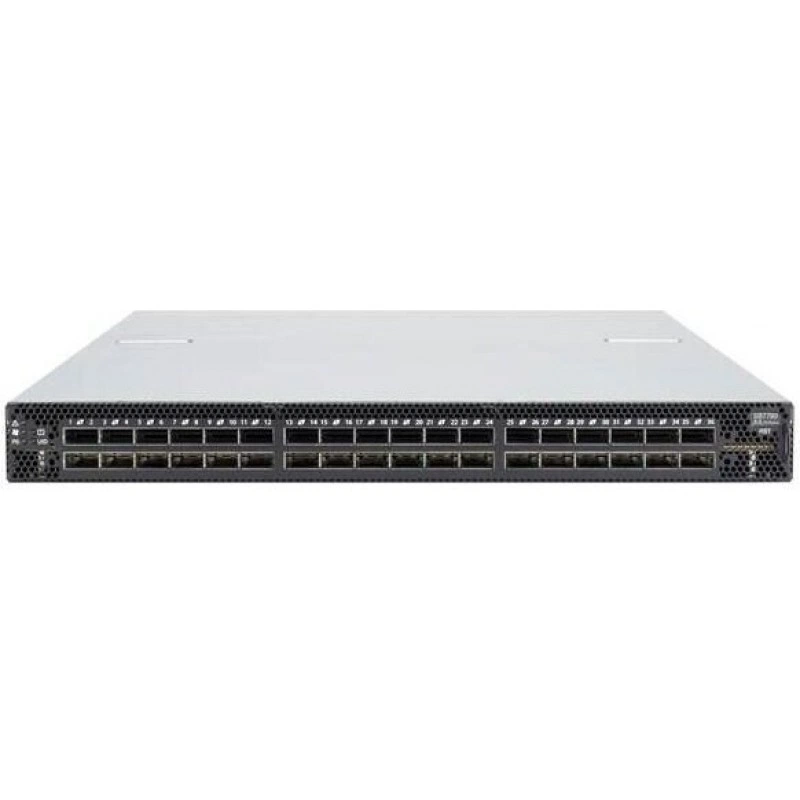

834977-B22 - Коммутатор Mellanox IB EDR v2 36p RAF

Expansion / Connectivity

Cables Included

2 x power cable - 6 ft

Compliant Standards

FCC Class A certified, VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC, RoHS, ICES, cTUVus, EN55024 Class A, ICES Class A, ISO 7779, ETS 300 753, VCCI Class A, AS/NZS CISPR 22, EN60950-1:2001, EN 61000-3-2 Class A, EN 61000-3-3 Class A, EN 55022 Class A, KN35, KCC KN32 Class A

Depth

27 in

Height

1.7 in

Included Accessories

Slide rail kit

Installed Qty

2 (installed) / 2 (max)

Interfaces

36 x EDR InfiniBand QSFP28

Power Device

Internal power supply - hot-plug

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V (50 - 60 Hz)

Weight

24.25 lbs

Width

16.8 in

General

Capacity

Forwarding table entries (Multicast): 16384

Compliant Standards

IBTA 1.21, IBTA 1.3

Device Type

Switch - 36 ports - unmanaged

Enclosure Type

Rack-mountable 1U

Features

Back to front airflow, reset button, InfiniBand FDR Link support, hot swappable fan, InfiniBand EDR Link support

Performance

Port-to-port latency: 90 ns ¦ Aggregate bandwidth: 7 Tbps

Ports

36 x EDR InfiniBand 100 Gigabit QSFP28

Subtype

InfiniBand
