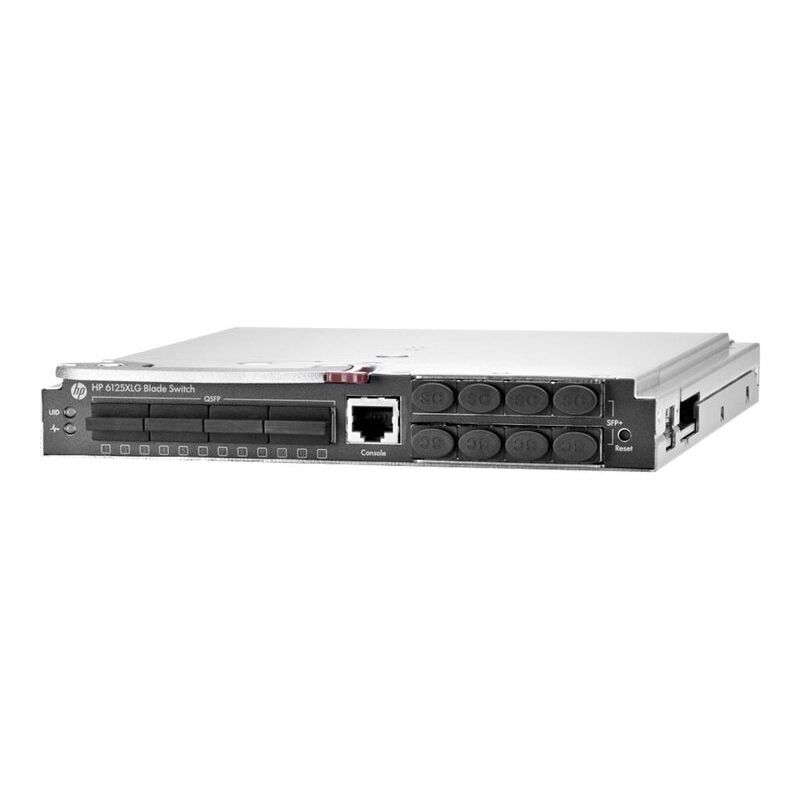

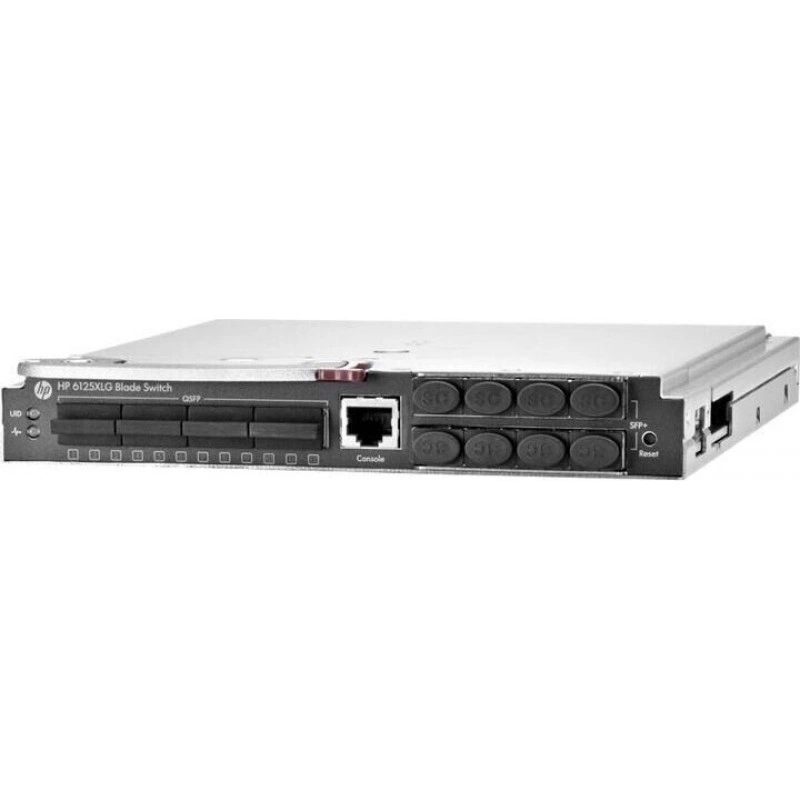

711307-B21 - Блейд-коммутатор HP 6125XLG

Capacity

Type

Virtual interfaces (VLANs)

Value

4094

Dimensions & Weight

Depth

10.5 in

Height

1.1 in

Weight

4.41 lbs

Width

7.6 in

Environmental Parameters

Humidity Range Operating

10 - 90% (non-condensing)

Max Operating Temperature

95 °F

Max Storage Temperature

158 °F

Min Operating Temperature

50 °F

Min Storage Temperature

-40 °F

Flash Memory

Installed Size

512 MB

Header

Brand

HPE

Compatibility

PC

Manufacturer

HP CTO Server Avnet

Model

6125XLG Ethernet Blade Switch

Packaged Quantity

1

Product Line

HPE

Interface Provided

Comments

Management

Qty

8

Type

10Gbit LAN

Miscellaneous

Authentication Method

RADIUS, Secure Shell v.2 (SSH2), TACACS+

Compliant Standards

AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, CISPR 22, CISPR 24, CNS 13438(95) Class A, EN 60950-1, FCC Part 15 A, FIPS 140-2, MIC, RoHS 6/6, UL, UL 60950-1, VCCI Class A, WEEE

Encryption Algorithm

IKE

Networking

Advanced Switching

Layer 3

Compliant Standards

IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x

Features

ARP support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Data Center Bridging Exchange (DCBX) support, Device Link Detection Protocol (DLDP) support, DHCP support, Dynamic ARP protection, Endpoint Admission Defense (EAD), Flow control, Full duplex mode, GARP VLAN Registration Protocol (GVRP), Ingress Layer 2 MAC Access Control Lists (ACLs), Intelligent Resilient Framework Technology (IRF), IPSec passthrough, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), Maximum Likelihood Demodulation (MLD), MLD snooping, Multicast Source Discovery Protocol (MSDP), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, sFlow, Static routing, STP Root Guard, Syslog support, Tunneling, Unicast Reverse Path Forwarding (URPF), Virtual Route Redundancy Protocol (VRRP) support, VLAN support

Form Factor

Plug-in module

Jumbo Frame Support

10000 bytes

MAC Address Table Size

128K entries

Manageable

Yes

Ports Qty

12

Remote Management Protocol

SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, Telnet, TFTP

Routing Protocol

BGP, BGP-4, Bidirectional PIM, CIDR, ECMP, IGMP, IGMPv3, MLD, MSDP, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP

Stackable

Stackable

Status Indicators

Link/activity, Unit ID

Subcategory

Network hubs and switches

Subtype

40 Gigabit Ethernet

Type

Switch

Performance

Type

Forwarding performance

Value

14800000 packets per second

Ports

Qty

4

Type

40 Gigabit QSFP+

Ports (2nd)

Qty

8

Type

10 Gigabit SFP+

RAM

Installed Size

2 GB
