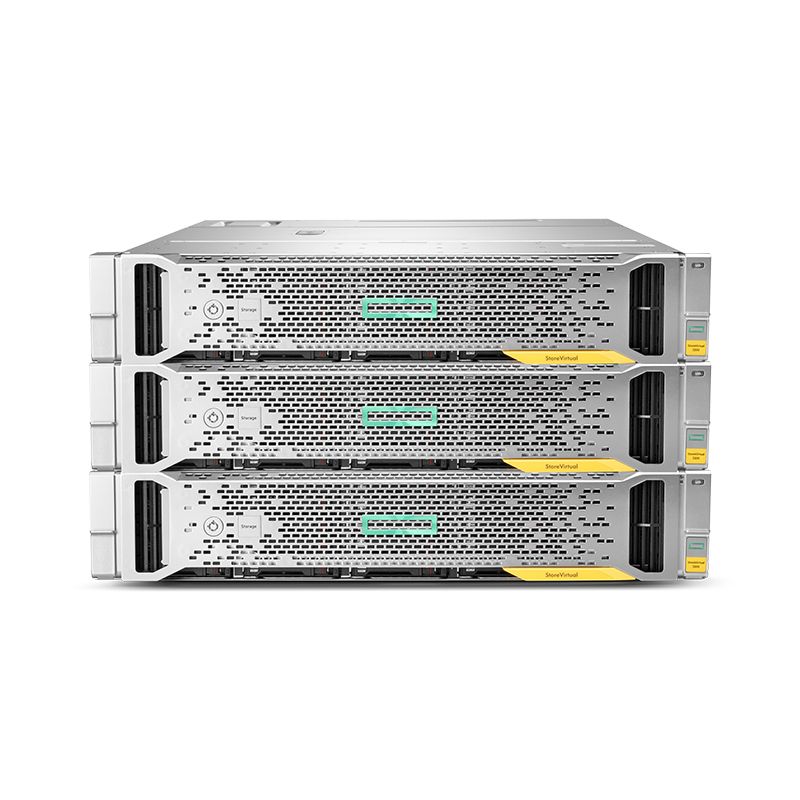

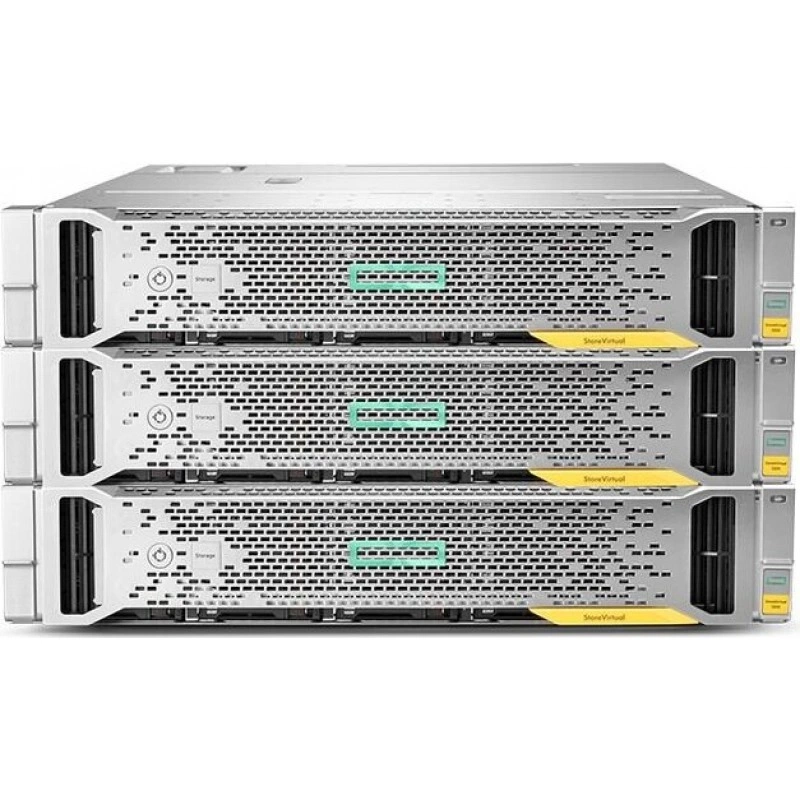

N9X19A - виртуальные хранилища HPE StoreVirtual

Chassis

Supported Devices / Modules Qty

12

Supported Drives

SAS-3

Dimensions & Weight

Depth

23.5 in

Height

3.5 in

Weight

57.98 lbs

Width

19 in

Environmental Parameters

Humidity Range Operating

10 - 90%

Max Operating Temperature

95 °F

Min Operating Temperature

50 °F

Sound Emission

67 dB

Expansion / Connectivity

Expansion Bays

12 hot-swap - 3.5 LFF

Expansion Slots

12

Interfaces

8 x SCSI - RJ-45 ¦ 1 x management ¦ 1 x management - 9 pin Micro-USB Type B ¦ 1 x management - RJ-45 ¦ 4 x USB ¦ 1 x Ethernet 1000

General

Device Type

Hard drive array

Enclosure Type

Rack-mountable - 2U

Hard Drive

Interface Type

SAS 12Gb/s

Type

Hot-swap

Manufacturer Warranty

Service & Support

Limited warranty - parts - 3 years

Miscellaneous

Compliant Standards

BSMI CNS 13438 Class A, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, UL 60950, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1, China RoHS, AS/NZS CISPR22:2006 Class A, VCCI - V-3/2014.04, ICES-003 issue 5 Class A, FCC CFR47 Part 15 B Class A

Included Accessories

Rack mounting kit, 2 power cords

Power

Max Supported Qty

2

Power Device

2 x internal power supply - hot-plug

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V - 50/60 Hz

Processor

Type

2 x

RAM

Installed Size

16 GB

Storage

HDD Array External Interface

iSCSI (1 GbE)

Max Supported Capacity

288 TB

Maximum LUNs

2

Total Array Capacity

8 TB

Storage Controller

Cache / Buffer Size (Max)

2 GB

Data Transfer Rate

1.2 GBps

Interface Type

SAS 12Gb/s

RAID Level

RAID 0, RAID 5, RAID 6, RAID 10

Type

2 x RAID

System Requirements

OS Required

Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 with Hyper-V, Ubuntu 12.04 LTS Server Edition, VMware ESXi 6.0
