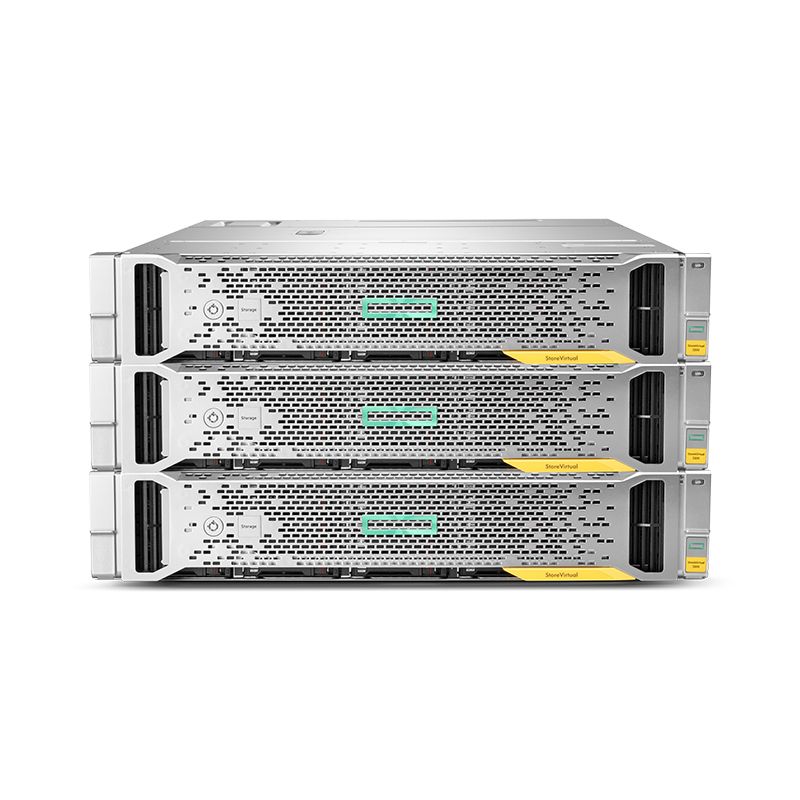

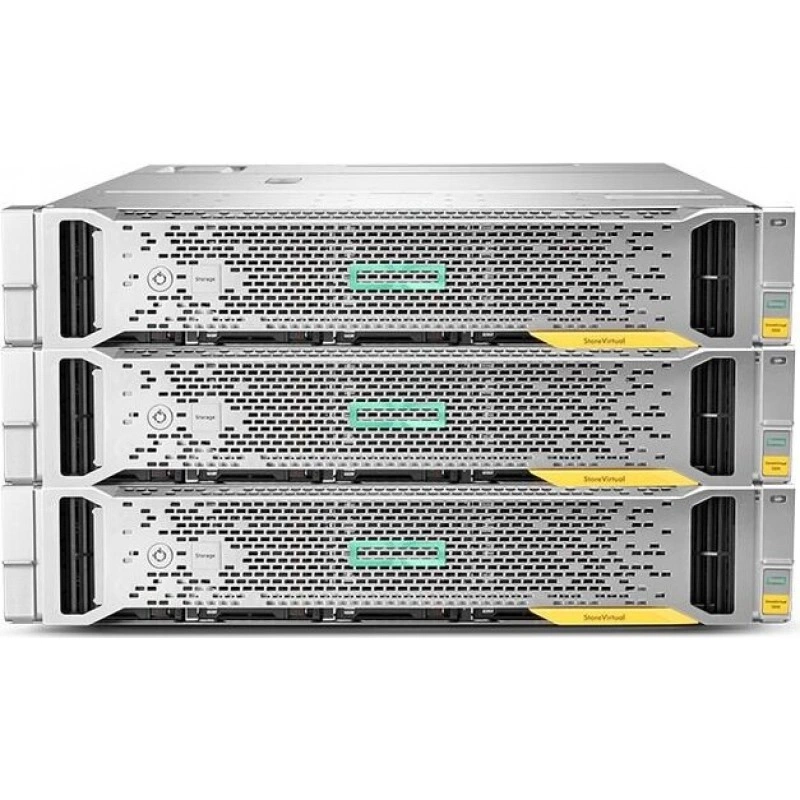

B7E30A - виртуальные хранилища HPE StoreVirtual

Chassis

Installed Devices / Modules Qty

25

Supported Devices / Modules Qty

25

Supported Drives

SAS-2

Environmental Parameters

Humidity Range Operating

10 - 90% (non-condensing)

Max Operating Temperature

95 °F

Min Operating Temperature

50 °F

Expansion / Connectivity

Expansion Bays

25 (total) / 0 (free) x hot-swap - 2.5 SFF ¦ 2 hot-swap - 2.5 SFF

Expansion Slots

2 (total) / 0 (free) x processor ¦ 16 x memory - DIMM 240-pin ¦ 2 x PCI Express 3.0 ¦ X expansion slot ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSDHC

Interfaces

2 x Ethernet 10Gb

General

Device Type

Hard drive array

Hard Drive

Capacity

25 x 900 GB

Interface Type

SAS 6Gb/s

Spindle Speed

10000 rpm

Type

HDD - hot-swap

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Miscellaneous

Cables Included

2 x Serial ATA / SAS cable - 6.6 ft

Compliant Standards

FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, RoHS, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438

Software Included

LeftHand SAN/iQ Storage Clustering, LeftHand SAN/iQ Network RAID, LeftHand SAN/iQ Thin Provisioning, LeftHand SAN/iQ Snapshots, LeftHand SAN/iQ Remote Copy, LeftHand SAN/iQ Multi-Site/DR Solution Pack, HP Smart Array Advanced Pack 2.0

Power

Max Supported Qty

2

Power Device

2 x internal power supply - hot-plug

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Voltage Required

AC 120/230 V

Processor

Type

2 x Xeon 2 GHz

RAM

Installed Size

64 GB

Storage

HDD Array External Interface

iSCSI (10 GbE)

Total Array Capacity

22.5 TB

Storage Controller

Cache / Buffer Size (Max)

2 GB

RAID Level

RAID 5, RAID 6, RAID 10

Type

RAID
