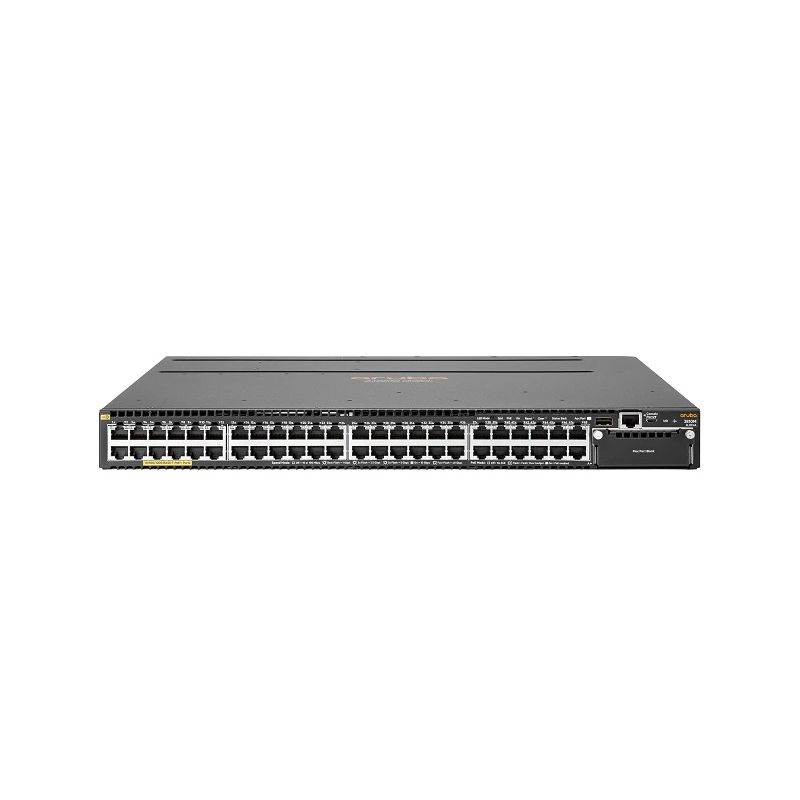

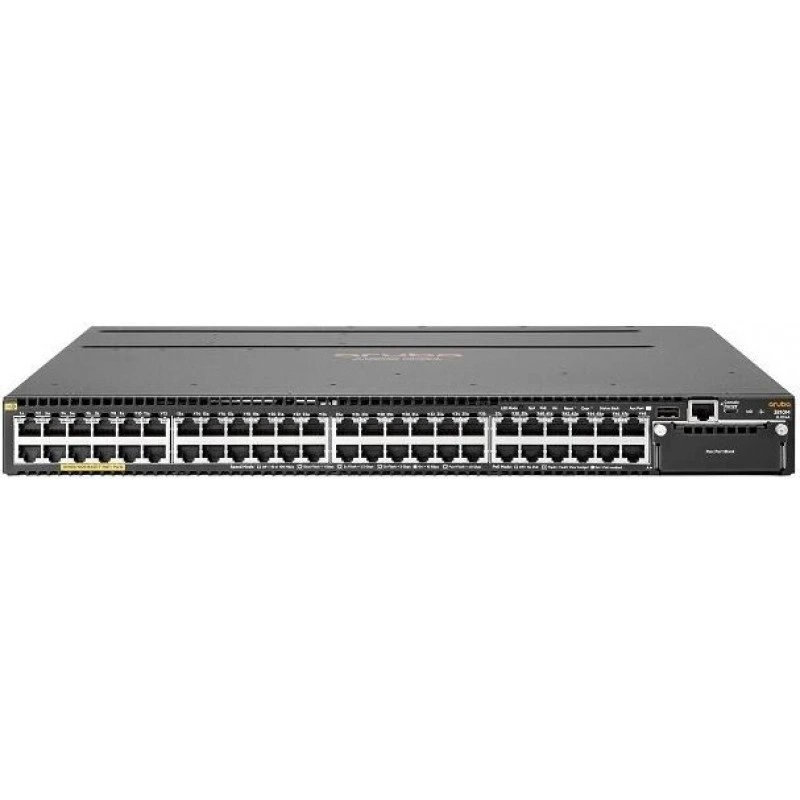

HPE JL429A - Коммутаторы Aruba 3810

Dimensions

Depth

17 in

Height

1.7 in

Width

17.4 in

Environmental Parameters

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)

Max Operating Temperature

113 °F

Max Storage Temperature

158 °F

Min Operating Temperature

32 °F

Min Storage Temperature

-40 °F

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x Stacking Module slot

Interfaces

48 x 1000Base-T RJ-45 PoE+ ¦ 1 x serial (console) RJ-45 management ¦ 1 x management RJ-45 ¦ 1 x RJ-45 ¦ 1 x micro-USB Type B

General

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Capacity

IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at

Device Type

Switch - 48 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable 1U

Encryption Algorithm

SSL

Features

ARP support, Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Uni-Directional Link Detection (UDLD), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), sFlow v5, Type of Service (ToS), OpenFlow support, Internet Control Message Protocol (ICMP)

Flash Memory

1 GB

Jumbo Frame Support

Yes

MAC Address Table Size

64K entries

Number of Processors

2

Performance

Latency (1000Base-T): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 190.5 Mpps ¦ Routing/switching capacity: 320 Gbps ¦ Switching fabric bandwidth: 338 Gbps

Ports

48 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

RAM

6 GB DDR3 SDRAM

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON

Routing Protocol

OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)

Subtype

Gigabit Ethernet

Miscellaneous

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, IEC 60825-1:2007, EN 62479:2010, EN55022:2010, EN55024:2010, EN61000-3-3:2008, IEC 60950-1:2005 Second Edition, CSA 22.2 No. 60950-1, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Included Accessories

Fan tray

Rack Mounting Kit

Included

Power

80 PLUS Certification

80 PLUS Silver

ENERGY STAR Certified

Yes

Installed Qty

1 (installed) / 2 (max)

Power Device

Internal power supply - hot-plug

Power Provided

1050 Watt

Power Redundancy

Yes

Power Redundancy Scheme

1+1 (with optional power supply)

Voltage Required

DC 54 V
