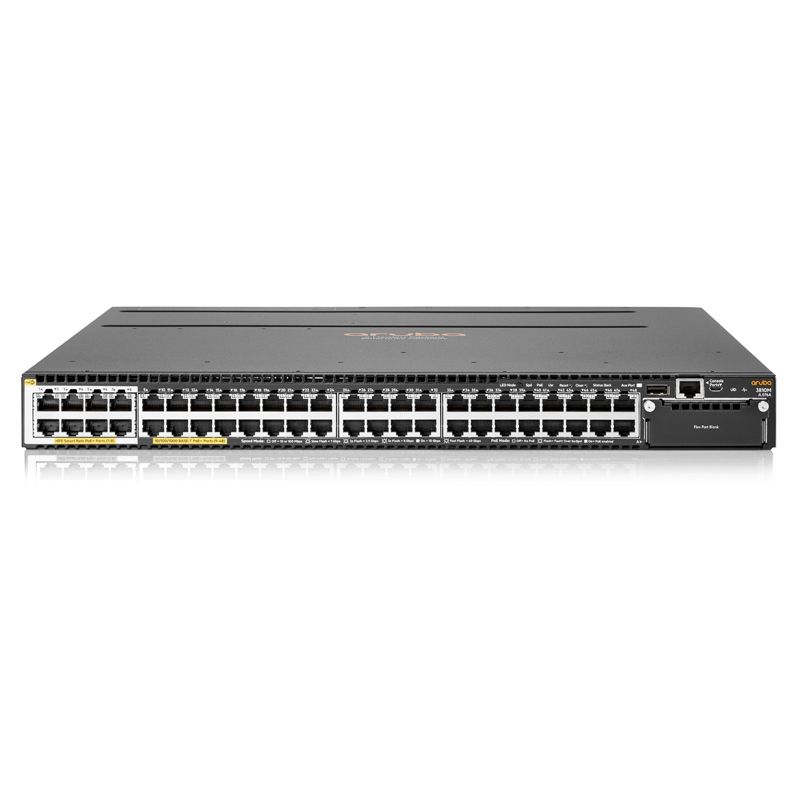

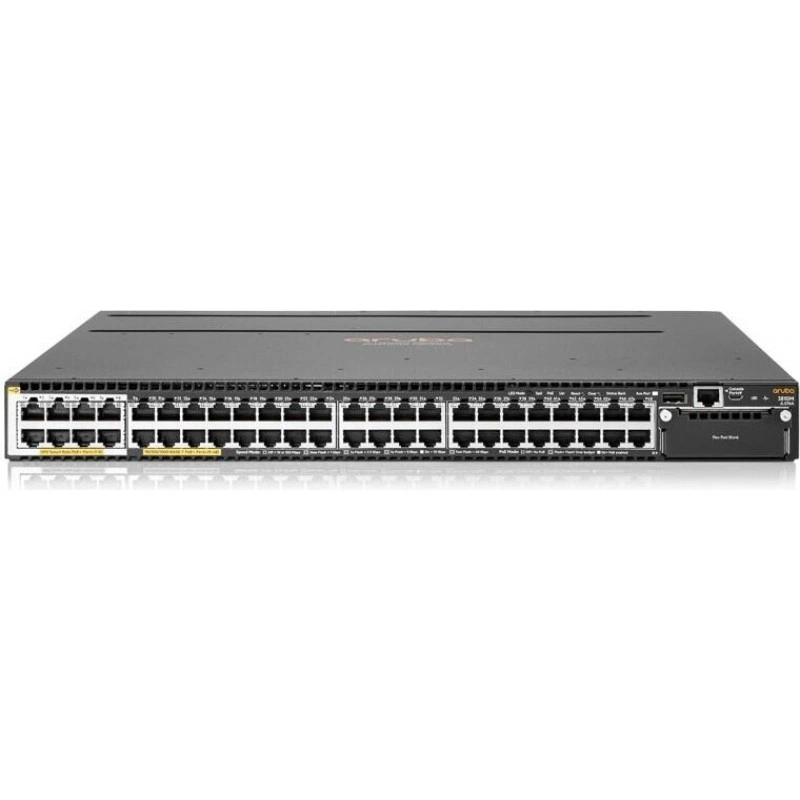

HPE JL076A - Коммутатор Aruba 3810

General

Additional ports and slots

· 1 stacking module slot· 1 RJ-45 serial console port· 1 RJ-45 out-of-band management port· 1 dual-personality (RJ-45 or USB micro-B)

Emissions

· FCC Class A· VCCI Class A· EN 55022/CISPR 22 Class A· EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

Environment

· Operating temperature: 0°C to 45°C (32°F to 113°F)· Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing· Nonoperating/Storage temperature: -40°C to 70°C (-40°F to 158°F)· Nonoperating/Storage relative humidity: 15% to 90% @ 65°C (149°F), noncondensing· Altitude: Up to 10,000 ft (3 km)· Acoustic: Power: 49 dB, Pressure: 31.5 dB

Fan tray

Includes: 1 x JL088A1 fan tray slotSwitch ships with 1 JL088A fan tray installed. Spares ordered separately.

I/O ports and slots

· 40 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);· Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only;Ports 1 - 40 support MACSec· 8 RJ-45 HPE Smart Rate Multi-Gigabit ports;Ports 1 - 8 support MACSec· 1 open module slotsSupports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module

Immunity

· Generic: EN55022: 2010· EN: EN55024: 2010· ESD: IEC 61000-4-2· Radiated: IEC 61000-4-3; 3 V/m· EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)· Surge: IEC 61000-4-5; 1 kV/2 kV AC· Conducted: IEC 61000-4-6; 3 V· Power frequency magnetic field: IEC 61000-4-8; 1 A/m, 50 or 60 Hz· Voltage dips and interruptions: IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods· Harmonics: EN61000-3-2:2006 +A1:2009 +A2:2009 Class A· Flicker: EN61000-3-3:2008

Included Accessories

1 Aruba 3810 Switch Fan Tray (JL088A)

Management

· Aruba AirWave Network Management· IMC – Intelligent Management Center· Command-line interface· Web browser· Configuration menu;· Out-of-band management (RJ-45 Ethernet)· In-line and out-ofband· Out-of-band management (serial RS-232c or micro usb)

Memory and processor

P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD CardDual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal

Mounting and enclosure

Mounts in an EIA-standard 19 in.telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Performance

· IPv6 Ready Certified· 1000 Mb Latency: · 10 Gb/s Latency: · 40 Gb/s Latency: 1.5 Μs (FIFO 64-byte packets)· Throughput: Up to 273.8 Mp/s (64-byte packets)· Routing/Switching capacity:480 Gb/s· Switch fabric speed:508 Gb/s· Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)· MAC address table size: 64000 entries

Physical characteristics

· Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height)

Power Supplies

· 2 power supply slots· 1 minimum power supply required (ordered separately)

Safety

· EN 60950/IEC 60950· UL 60950· UL 60950-1· CAN/CSA 22.2 No. 60950· EN 60825· CSA 22.2 60950-1· EN62479:2010· EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013· EN62368-1, Ed. 2· IEC 60825:2007· IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013· EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1· UL 62368-1 Ed.2

Type

Aruba 3810M 40G 8 HPE Smart Rate PoE+ 1-slot Switch
