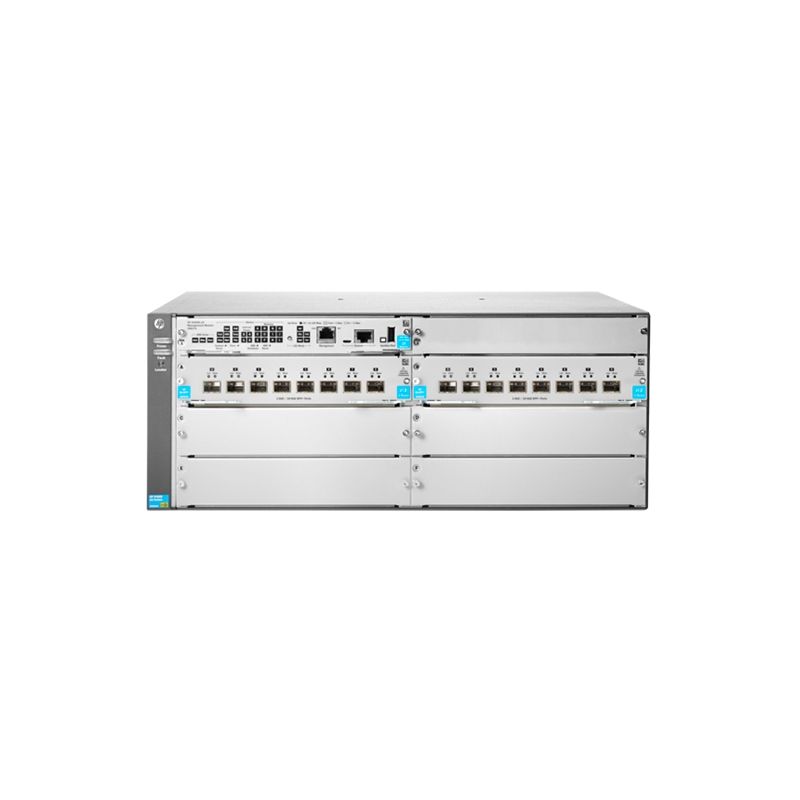

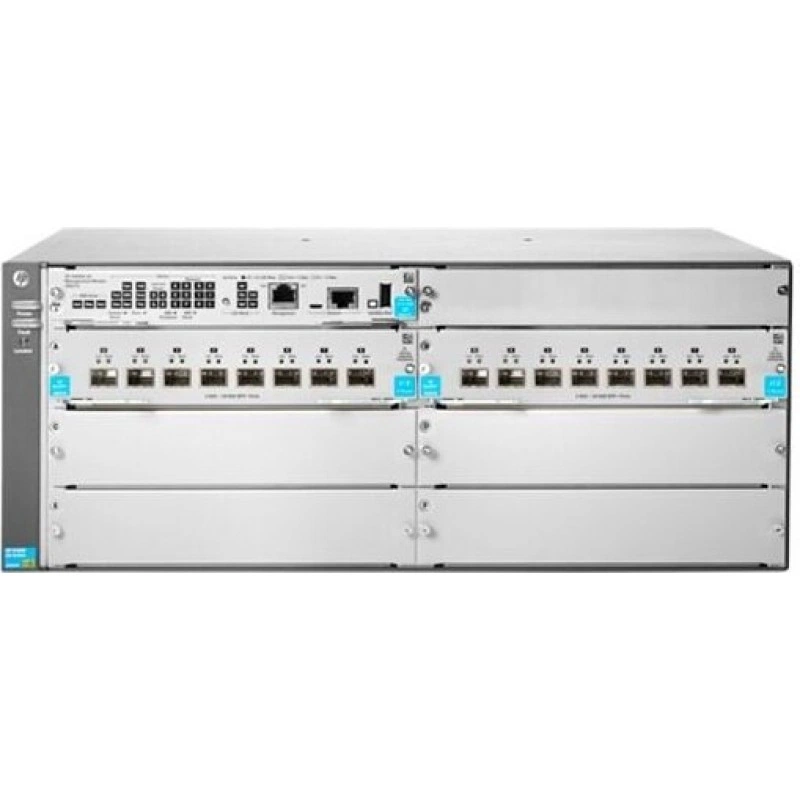

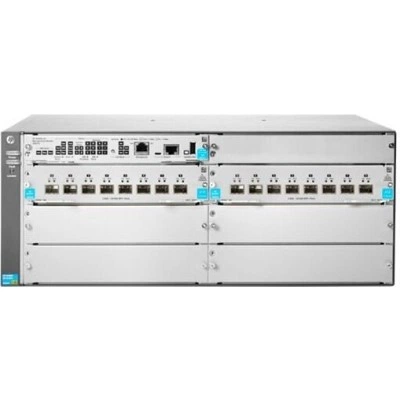

HPE JL095A - Блоки Aruba 54xx в комплекте

General

80plus.org Certification

Gold

Acoustic

Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296

Altitude

Up to 10,000 ft (3 km)

Description

Does not come with power supply. Two power supply slots are available; three different power supplies areavailable. See power supply products for additional specifications.

Dimensions (W x D x H)

17.5(w) x 17.75(d) x 6.9(h) in. (44.45 x 45.09 x 17.53 cm) (4U height)

Emissions

FCC part 15 Class A; EN 55022/CISPR 22 Class A

Fan tray

Includes: 1 x J9831A1 fan tray slot

Frequency

50/60 Hz

I/O ports and slots

16 open 10GbE SFP+ transceiver slots4 open module slotsSupports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPESmart Rate Multi-Gigabit or 12 40GbE ports, or a combination

Idle power

215 W

ImmunityENESDRadiatedEFT/BurstSurgeConductedPower frequency magnetic fieldHarmonicsFlicker

EN 55024, CISPR 24IEC 61000-4-2; 4 kV CD, 8 kV AD;HPE ENV. 765.002IEC 61000-4-3; 3 V/mIEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DCIEC 61000-4-6; 3 VrmsIEC 61000-4-8; 1 A/m, 50 or 60 HzIEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periodsEN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3

Included Accessories

1 HPE 5400R zl2 Management Module (J9827A)1 HPE 5406R zl2 Switch Fan Tray (J9831A)2 HPE 8-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9993A)

MAC Address Table Size

64000 entries

Management

IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-bandmanagement (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB)AirWave Network Management

Management Module

Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM

Maximum heat dissipation

2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE);3700 BTU/hr (3903 kJ/hr), (max. using PoE)

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surfacemounting only

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Notes

Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later;For example, J9142B, J8177C).

Operating relative humidity

15% to 95% @ 113°F (45°C), noncondensing

Operating temperature

32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS OpacityShield installed

Power Supplies

2 power supply slots 1 minimum power supply required (ordered separately)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Routing/switching Capacity

960 Gbps

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950

Switch fabric speed

1015 Gbps

Throughput

up to 571.4 Mpps

Type

HPE 5406R 16-port SFP+ (No PSU) v3 zl2 Switch

v2 10G Module

ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal

v2 Gigabit Module

ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal

v3 10G Module

Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal

v3 40G Module

Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal

v3 Gigabit Module

Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal

Voltage

110–127/200–240 VAC, rated (depending on power supply chosen)

Weight

28.11 lb (12.75 kg)
