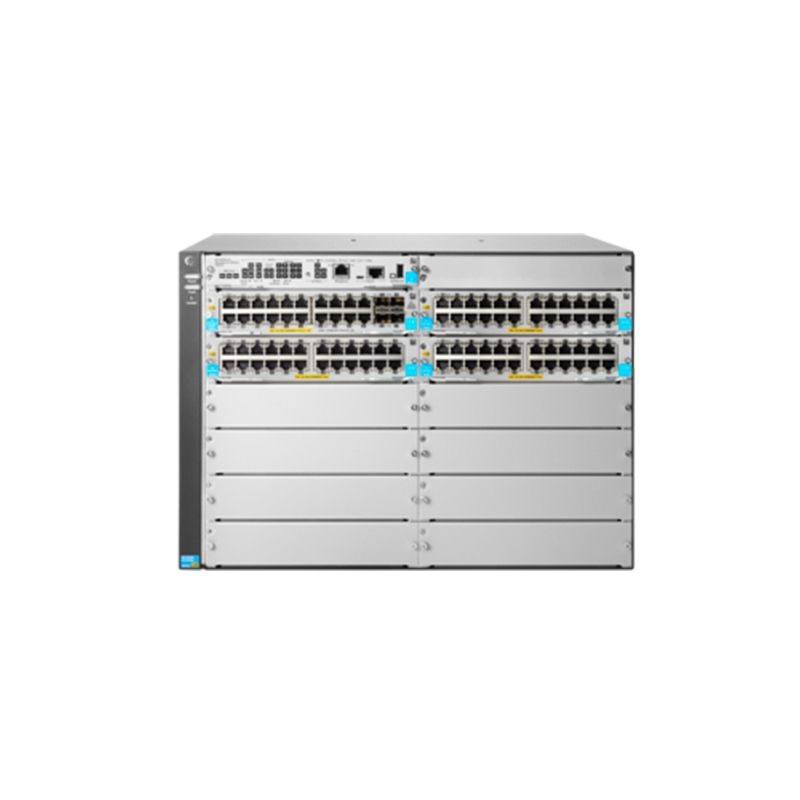

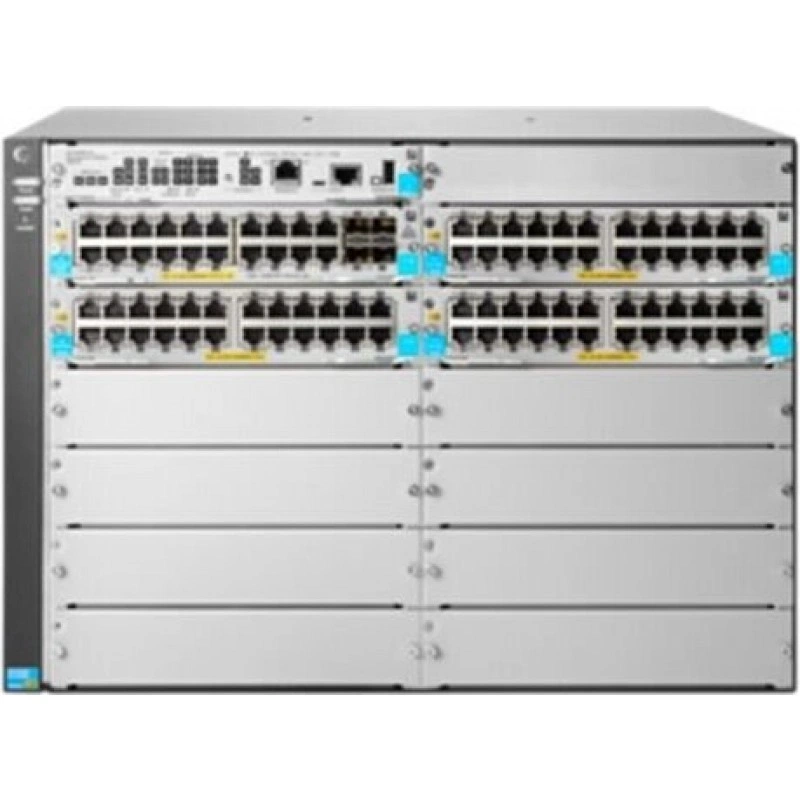

HPE JL001A - Блоки Aruba 54xx в комплекте

General

80plus.org Certification

Gold

Acoustic

Power: 49 dB, Pressure: 35.7 dB ISO 7779, ISO 9296

Altitude

Up to 10,000 ft (3 km)

Description

Does not come with power supply. Two power supply slots are available; three different power supplies are available.See power supply products for additional specifications.

Dimensions (W x D x H)

17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height)

Emissions

FCC part 15 Class A; EN 55022/CISPR 22 Class A

Fan tray

Includes: 1 x J9832A1 fan tray slot

Frequency

50/60 Hz

I/O ports and slots

92 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASET/100BASE-TX:half or full; 1000BASE-T: full only4 open 10GbE SFP+ transceiver slots8 open module slotsSupports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE SmartRate Multi-Gigabit or 24 40GbE ports, or a combination

Idle power

312 W

ImmunityENESDRadiatedEFT/BurstSurgeConductedPower frequency magnetic fieldHarmonicsFlicker

EN 55024, CISPR 24IEC 61000-4-2; 4 kV CD, 8 kV AD;HPE ENV. 765.002IEC 61000-4-3; 3 V/mIEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DCIEC 61000-4-6; 3 VrmsIEC 61000-4-8; 1 A/m, 50 or 60 HzIEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periodsEN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3

Included Accessories

1 HPE 5400R zl2 Management Module (J9827A)1 HPE 5412R zl2 Switch Fan Tray (J9832A)3 HPE 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module (J9986A)1 HPE 20-port 10/100/1000BASE-T PoE+/ 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9990A)

MAC Address Table Size

64000 entries

Management

IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-bandmanagement (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial RS-232C or micro USB)AirWave Network Management

Management Module

Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM

Maximum heat dissipation

4900 BTU/hr (5169.5 kJ/hr), (max. non-PoE);7400 BTU/hr (7807 kJ/hr), (max. using PoE)

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Notes

Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later;For example, J9142B, J8177C).

Operating relative humidity

15% to 95% @ 113°F (45°C), noncondensing

Operating temperature

32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS Opacity Shield installed

Power Supplies

4 power supply slots2 minimum power supplies required (ordered separately)

Routing table size

10000 entries (IPv4), 5000 entries (IPv6)

Routing/switching Capacity

1920 Gbps

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950

Switch fabric speed

2030 Gbps

Throughput

up to 1142.8 Mpps

Type

HPE 5412R 92GT PoE+/4SFP+ (No PSU) v3 zl2 Switch

v2 10G Module

ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal

v2 Gigabit Module

ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal

v3 10G Module

Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal

v3 40G Module

Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal

v3 Gigabit Module

Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal

Voltage

110–127/200–240 VAC, rated (depending on power supply chosen)

Weight

45.19 lb (20.5 kg)
