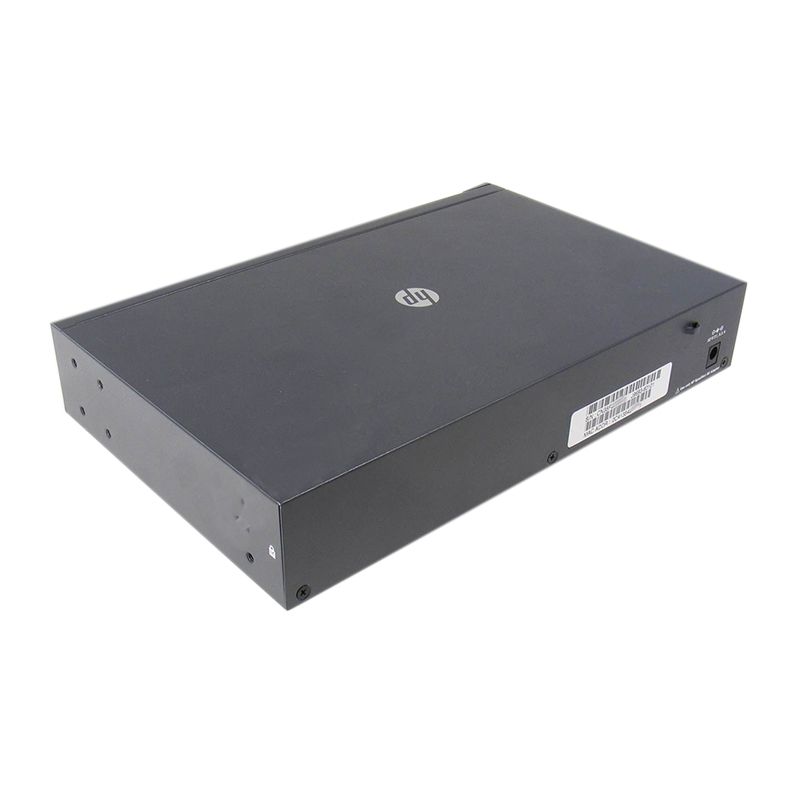

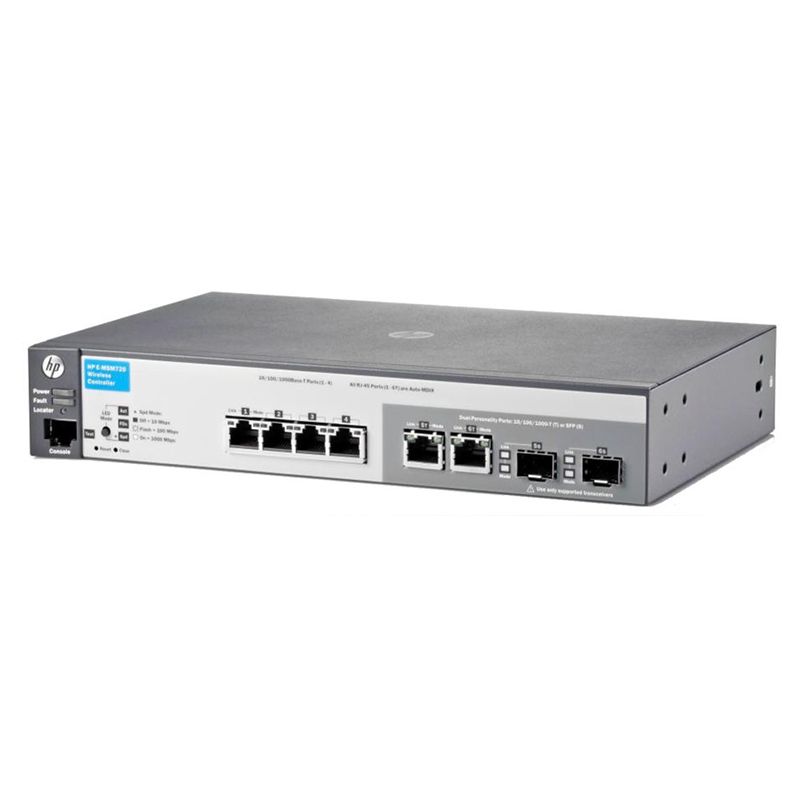

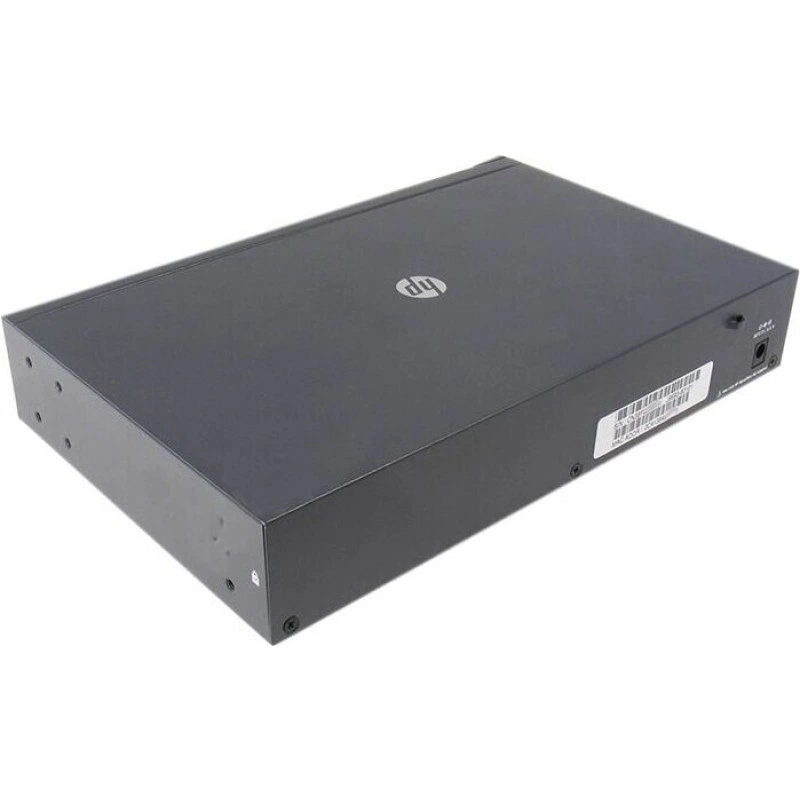

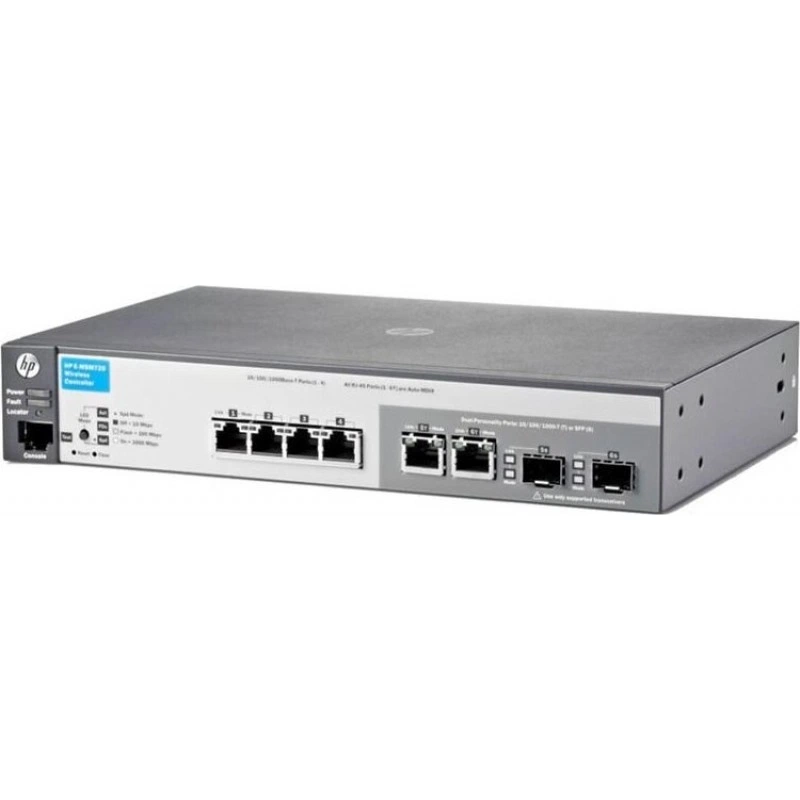

J9693A - Контроллер HP MSM720

General

AC voltage

100–240 VAC

Additional ports and slots

1 RJ-45 serial console port

Current

.2/.1 A

Dimensions

6.28(w) x 10(d) x 1.75(h) in (15.95 x 25.4 x 4.45 cm) (1U height)

Emissions

FCC part 15 Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003

Features

Supported:IEEE 802.11 a/b/g/n and .11ac access points and devices10 to 40 access points and/or access devices (in increments of 10)IEEE 802.3ad Link Aggregation Control Protocol (LACP)Up to 250 concurrent total usersUp to 80 VLAN interfacesUp to 4094 VLAN ID’s Included services:Plug-and-play AP management and WLAN managementGuest accessCaptive portalPCI DSS compliance for wireless PoS trafficSupport for Real-Time Location Services (RTLS)Standard Layer 2 roaming with VoWLAN supportSupport for up to 16 VSC profilesUnified policy enforcement and network visibilityGroup bandwidth management

Frequency

50/60 Hz

I/O ports and slots

· 4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only· 2 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Maximum heat dissipation

70 BTU/hr (73.85 kJ/hr)

Maximum power rating

20 W

Mounting and enclosure

Supports the mounting options of the 2520-8 PoE switch, including EIA-standard 19 in. telco rack or equipment cabinet (rack-mounting kit included); horizontal surface or wall mounting

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C)

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Operating temperature

41°F to 113°F (5°C to 45°C)

Safety

UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1

Throughput

up to 8.9 million pps

Type

HPE MSM720 Access Controller (WW)

Weight

3.62 lb (1.64 kg)
