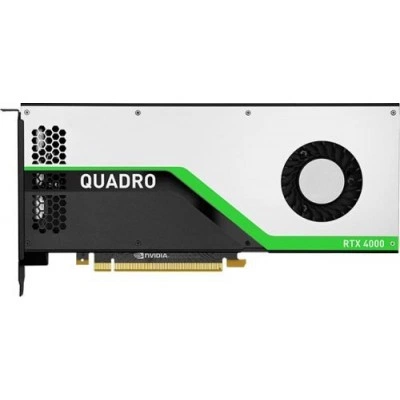

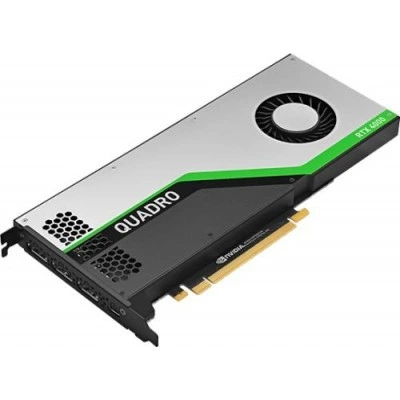

HP 5JV89AA видеокарта, PCI-E x16, 3

Идентификаторы

Артикул производителя

5JV89AA

Питание

Разъем дополнительного питания

8 pin

Процессорная подсистема

Максимальное энергопотребление видеоядра на номинальной частоте

160 Вт

Площадь ядра

445 мм²

Техпроцесс

12 нм

Число универсальных процессоров

2304

Габариты и масса

Длина видеокарты

241 мм

Интерфейсы и подключение

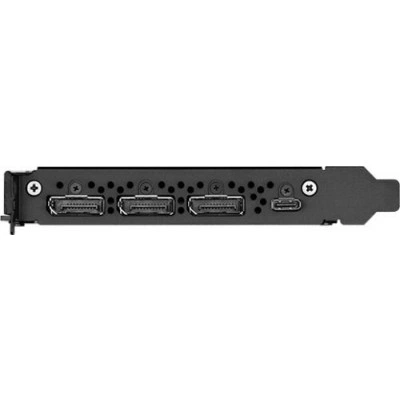

DisplayPort

3 шт

Версия интерфейса

3

Интерфейс

PCI-E x16

Максимальное разрешение портов DisplayPort

7680x4320

Комплектация и совместимость

Совместимость

HP Z8 G4 Workstation (2WU48EA), HP Z8 G4 Workstation (2WU49EA), HP Z4 G4 Workstation (2WU64EA), HP Z4 G4 Workstation (2WU66EA), HP Z4 G4 Workstation (2WU66ET), HP Z4 G4 Workstation (2WU67ET), HP Z4 G4 Workstation (2WU69EA), HP Z4 G4 Workstation (2WU74EA), HP Z2 Tower G4 Base Model Workstation (2YW27AV), HP Z4 G4 Workstation (3MB65EA), HP Z4 G4 Workstation (3MB66EA), HP Z4 G4 Workstation (3MB67EA), HP Z4 G4 Workstation (3MB68EA), HP Z4 G4 Workstation (3MB70EA), HP Z4 G4 Workstation (3MC06EA), HP Z4 G4 Workstation (3MC07EA), HP Z4 G4 Workstation (3MC08EA), HP Z4 G4 Workstation (3MC09EA), HP Z4 G4 Workstation (3MC10EA), HP Z4 G4 Workstation (3MC16EA), HP Z4 G4 Workstation (3MC17EA), HP Z4 G4 Workstation (3MC56EA), HP Z4 G4 Workstation (3MC57EA), HP Z8 G4 Workstation (3MC58EA), HP Z8 G4 Workstation (3MC59EA), HP Z2 Tower G4 Workstation (4QH59EA), HP Z4 G4 Workstation (4RW73EA), HP Z4 G4 Workstation (4RW74EA), HP Z2 Tower G4 Workstation (4RW80EA), HP Z2 Tower G4 Workstation (4RW82EA), HP Z2 Tower G4 Workstation (4RW83EA), HP Z2 Tower G4 Workstation (4RW84EA), HP Z2 Tower G4 Workstation (4RW85EA), HP Z2 Tower G4 Workstation (4RW86EA), HP Z2 Tower G4 Workstation (4RW87EA), HP Z2 Tower G4 Workstation (4RW89EA), HP Z2 Tower G4 Workstation (4RX02EA), HP Z2 Tower G4 Workstation (4RX25EA), HP Z4 G4 Base Model Workstation (1JP11AV), HP Z2 Tower G4 Workstation (1YZ78EA), HP Z6 G4 Workstation (2WU41EA), HP Z6 G4 Workstation (2WU42EA), HP Z6 G4 Workstation (2WU43EA), HP Z6 G4 Workstation (2WU44EA), HP Z6 G4 Workstation (2WU45EA), HP Z6 G4 Workstation (2WU46EA), HP Z6 G4 Workstation (2WU46ET), HP Z2 Tower G4 Workstation (4RX36EA), HP Z2 Tower G4 Workstation (4RX37EA), HP Z2 Tower G4 Workstation (4RX38EA), HP Z2 Tower G4 Workstation (4RX39EA), HP Z2 Tower G4 Workstation (4RX40EA), HP Z2 Tower G4 Workstation (4RX41EA), HP Z2 Tower G4 Workstation (5JA31EA), HP Z2 Tower G4 Workstation (5JA32EA), HP Z2 Tower G4 Workstation (5JA33EA), HP Z4 G4 Workstation (5JA42EA), HP Z2 Tower G4 Workstation (5JA51EA), HP Z2 Tower G4 Workstation (5UC60EA), HP Z2 Tower G4 Workstation (5UC61EA), HP Z2 Tower G4 Workstation (5UC72EA), HP Z2 Tower G4 Workstation (5UC73EA), HP Z4 G4 Workstation (5UD02EA), HP Z2 Tower G4 Workstation (5UD16EA), HP Z2 Tower G4 Workstation (5UD20EA), HP Z2 Tower G4 Workstation (5UD21EA), HP Z4 G4 Workstation (5UD45EA), HP Z4 G4 Workstation (6QN60EA), HP Z4 G4 Workstation (6QN61EA), HP Z4 G4 Workstation (6QN62EA), HP Z4 G4 Workstation (6QN63EA), HP Z4 G4 Workstation (6TK95EA), HP Z2 Tower G4 Workstation (6TL16EA), HP Z2 Tower G4 Workstation (6TL27EA), HP Z2 Tower G4 Workstation (6TL42EA), HP Z2 Tower G4 Workstation (6TL43EA), HP Z4 G4 Workstation (6TL44EA), HP Z4 G4 Workstation (6TL48EA), HP Z4 G4 Workstation (6TL49EA), HP Z2 Tower G4 Workstation (6TL87EA), HP Z2 Tower G4 Workstation (6TS88EA), HP Z2 Tower G4 Workstation (6TS89EA), HP Z2 Tower G4 Workstation (6TS90EA), HP Z4 G4 Workstation (6TT35EA), HP Z4 G4 Workstation (6TT36EA), HP Z2 Tower G4 Workstation (6TT37EA), HP Z2 Tower G4 Workstation (6TT38EA), HP Z2 Tower G4 Workstation (6TT82EA), HP Z2 Tower G4 Workstation (6TT97EA), HP Z2 Tower G4 Workstation (6TT98EA), HP Z4 G4 Workstation (6TT99EA), HP Z2 Tower G4 Workstation (6TW12EA), HP Z2 Tower G4 Workstation (6TW13EA), HP Z2 Tower G4 Workstation (6TW14EA), HP Z2 Tower G4 Workstation (6TW81EA), HP Z2 Tower G4 Workstation (6TW82EA), HP Z4 G4 Workstation (6TW84EA), HP Z2 Tower G4 Workstation (6TW95EA), HP Z2 Tower G4 Workstation (6TW96EA), HP Z2 Tower G4 Workstation (6TW97EA), HP Z2 Tower G4 Workstation (6TW98EA), HP Z2 Tower G4 Workstation (6TW99EA), HP Z2 Tower G4 Workstation (6TX00EA), HP Z2 Tower G4 Workstation (6TX01EA), HP Z2 Tower G4 Workstation (6TX05EA), HP Z2 Tower G4 Workstation (6TX07EA), HP Z2 Tower G4 Workstation (6TX32EA), HP Z2 Tower G4 Workstation (6TX33EA), HP Z2 Tower G4 Workstation (6TX36EA), HP Z4 G4 Workstation (6QN65EA), HP Z4 G4 Workstation (6QN66EA), HP Z4 G4 Workstation (6QN66ET), HP Z4 G4 Workstation (6QN67EA), HP Z4 G4 Workstation (6QN68EA), HP Z4 G4 Workstation (6QN69EA), HP Z6 G4 Workstation (6QN70EA), HP Z6 G4 Workstation (6QN70ET), HP Z6 G4 Workstation (6QN71EA), HP Z4 G4 Workstation (6QN75EA), HP Z4 G4 Workstation (6QN76EA), HP Z4 G4 Workstation (6QN77EA), HP Z4 G4 Workstation (6QN78EA), HP Z8 G4 Workstation (6QN80EA), HP Z8 G4 Workstation (6QN90EA), HP Z4 G4 Workstation (6QN91EA), HP Z4 G4 Workstation (6QN93EA), HP Z2 Tower G4 Workstation (6TX62EA), HP Z2 Tower G4 Workstation (6TX74EA), HP Z2 Tower G4 Workstation (6TX75EA), HP Z2 Tower G4 Workstation (6TX76EA), HP Z2 Tower G4 Workstation (6TX77EA), HP Z2 Tower G4 Workstation (8JJ69EA), HP Z2 Tower G4 Workstation (8JJ70EA), HP Z2 Tower G4 Workstation (8JJ71EA), HP Z2 Tower G4 Workstation (8JJ72EA), HP Z2 Tower G4 Workstation (8JJ73EA), HP Z2 Tower G4 Workstation (8JJ74EA), HP Z2 Tower G4 Workstation (9LM05EA), HP Z2 Tower G4 Workstation (9LM06EA), HP Z2 Tower G4 Workstation (9LM14EA), HP Z2 Tower G4 Workstation (9LM16EA), HP Z2 Tower G4 Workstation (9LN00EA), HP Z8 G4 Workstation (2WU50EA#ABU), HP Z4 G4 Workstation (2WU64ET#ABU), HP Z4 G4 Workstation (2WU65EA#ABU), HP Z4 G4 Workstation (2WU67EA#ABU), HP Z4 G4 Workstation (2WU68EA#ABU), HP Z4 G4 Workstation (2WU68ET#ABU), HP Z4 G4 Workstation (2WU69ET#ABU), HP Z4 G4 Workstation (4RW75EA#ABU), HP Z2 Tower G4 Workstation (4RW81EA#ABU), HP Z2 Tower G4 Workstation (4RW83ET#ABU), HP Z2 Tower G4 Workstation (4RW88EA#ABU), HP Z2 Tower G4 Workstation (4RX01EA#ABU), HP Z2 Tower G4 Workstation (5JA34EA#ABU), HP Z4 G4 Workstation (6TL48ET#ABU), HP Z2 Tower G4 Workstation (6TT80EA#ABU), HP Z2 Tower G4 Workstation (6TT81EA#ABU), HP Z2 Tower G4 Workstation (6TX06EA#ABU), HP Z2 Tower G4 Workstation (6TX34EA#ABU), HP Z2 Tower G4 Workstation (6TX35EA#ABU), HP Z2 Tower G4 Workstation (6TX37EA#ABU), HP Z4 G4 Workstation (6QP01EA), HP Z6 G4 Workstation (6QP06EA), HP Z6 G4 Workstation (Z3Y91AV), HP Z8 G4 Workstation (2WU47ET#ABU), HP Z8 G4 Workstation (2WU48ET#ABU), HP Z8 G4 Workstation (9LM91EA), HP Z8 G4 Workstation (9LM66EA), HP Z8 G4 Workstation (9LM67EA), HP Z8 G4 Workstation (9LM68EA), HP Z8 G4 Workstation (9LM69EA), HP Z8 G4 Workstation (9LM70EA), HP Z8 G4 Workstation (9LM71EA), HP Z8 G4 Workstation (6QN82EA), HP Z8 G4 Workstation (6QN72EA), HP Z8 G4 Workstation (2WU47EA), HP Z4 G4 Workstation (4RX47EA), HP Z4 G4 Workstation (5JA00EA), HP Z4 G4 Workstation (5JA29EA), HP Z4 G4 Workstation (6QN64EA), HP Z4 G4 Workstation (5UC62EA), HP Z4 G4 Workstation (5UC66EA), HP Z4 G4 Workstation (4RX31EA), HP Z4 G4 Workstation (6QN94EA), HP Z4 G4 Workstation (6QP00EA), HP Z4 G4 Workstation (6QN92EA), HP Z4 G4 Workstation (9LM35EA), HP Z4 G4 Workstation (9LM36EA), HP Z4 G4 Workstation (9LM37EA), HP Z4 G4 Workstation (9LM38EA), HP Z4 G4 Workstation (9LM39EA), HP Z4 G4 Workstation (9LM40EA), HP Z4 G4 Workstation (9LM41EA), HP Z4 G4 Workstation (9LM42EA), HP Z4 G4 Workstation (9LM43EA), HP Z4 G4 Workstation (9LM65EA), HP Z4 G4 Workstation (6TX43EA), HP Z4 G4 Workstation (9LM77EA), HP Z4 G4 Workstation (9LP18EA), HP Z4 G4 Workstation (9LP19EA), HP Z4 G4 Workstation (9LP20EA), HP Z4 G4 Workstation (9LP21EA), HP Z4 G4 Workstation (9LP24EA), HP Z4 G4 Workstation (9LP25EA), HP Z4 G4 Workstation (9LP39EA), HP Z4 G4 Workstation (9LP40EA), HP Z4 G4 Workstation (9LP41EA), HP Z4 G4 Workstation (9LP42EA), HP Z4 G4 Workstation (9LP43EA), HP Z4 G4 Workstation (9LM34EA#ABU), HP Z4 G4 Workstation (9LP22EA#ABU), HP Z4 G4 Workstation (9LP23EA#ABU), HP Z4 G4 Workstation (9LM99EA), HP Z4 G4 Workstation (6TK92EA), HP Z4 G4 Workstation (9LM90EA), HP Z2 Tower G4 Workstation (9LM87EA), HP Z6 G4 Workstation (6QN74EA), HP Z6 G4 Workstation (2WU44ET)

Конструкция и монтаж

Версия DirectX

12

Версия OpenCL

2

Версия OpenGL

4.6

Версия вершинных шейдеров

6.3

Версия геометрических шейдеров

6.3

Версия пиксельных шейдеров

6.3

Кодовое имя

TU104

Количество занимаемых слотов

1

Количество транзисторов

13600 млн

Максимальная степень FSAA

64 х

Максимальная степень анизотропной фильтрации

16 х

Максимальное количество подключаемых мониторов

3 шт

Низкий профиль (Низкопрофильное исполнение)

Нет

Объём

8192 МБ

Тип

GDDR6

Число блоков растеризации

64

Число текстурных блоков

144

Лицензирование и поддержка

Поддержка CUDA

Есть

Поддержка HDCP

Есть

Поддержка SLI

Нет

Поддержка USB Type-C

1 шт

Охлаждение

Тип охлаждения

Активное

Экран и графика

Объем видеопамяти

8 ГБ

Разрядность шины видеопамяти

256 бит
