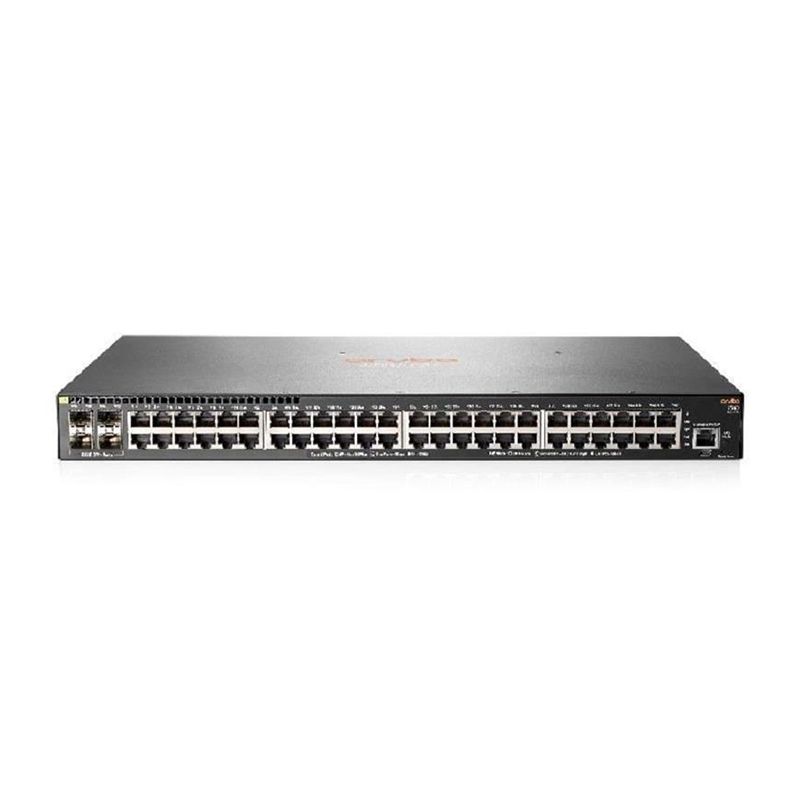

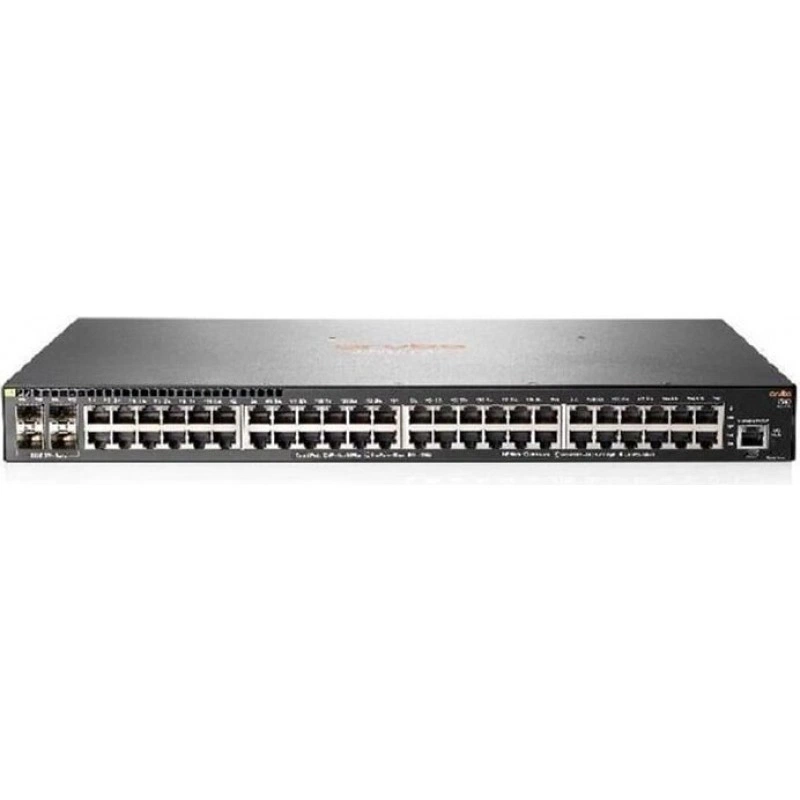

HPE JL355A - Коммутаторы серии Aruba 2540

Expansion / Connectivity

Humidity Range Operating

15 - 95% (non-condensing)

Humidity Range Storage

15 - 90% (non-condensing)

Max Operating Temperature

113 °F

Max Storage Temperature

158 °F

Min Operating Temperature

32 °F

Min Storage Temperature

-40 °F

Service & Support

Limited warranty - lifetime

General

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Compliant Standards

CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024: CISPR 24:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Depth

9.7 in

Device Type

Switch - 48 ports - managed

Enclosure Type

Desktop, rack-mountable, wall-mountable 1U

Encryption Algorithm

SSL

Flash Memory

4 GB

Height

1.7 in

Interfaces

48 x 1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x console RJ-45 management ¦ 1 x micro-USB Type B management

MAC Address Table Size

16384 entries

Performance

Throughput: 112 Mpps ¦ Switching capacity: 176 Gbps

Ports

48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+

Power Consumption Operational

46.6 Watt

Power Device

Internal power supply

Processor

1 x ARM: 1016 MHz

RAM

1 GB DDR3 SDRAM

Subtype

Gigabit Ethernet

Voltage Required

AC 120/230 V (50/60 Hz)

Weight

6.83 lbs

Width

17.4 in
