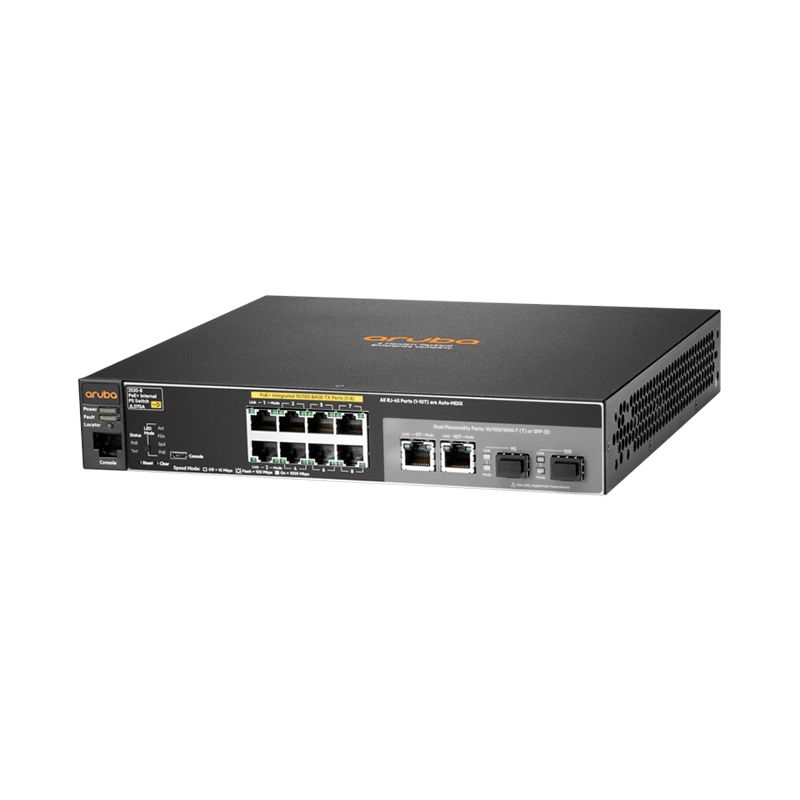

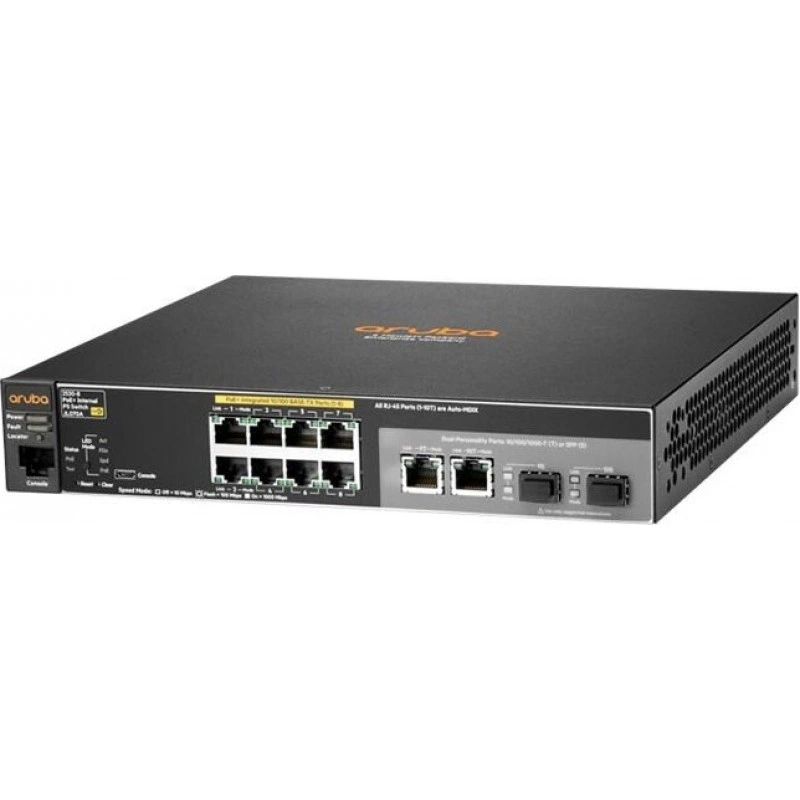

HPE JL070A - Коммутаторы серии Aruba 2530

General

AC voltage

100 - 127/200 - 240 VAC

Acoustic

Power: 0 dB, Pressure: 0 dB

Altitude

up to 10,000 ft (3 km)

Current

0.9/0.5 A

Dimensions

10(w) x 9.68(d) x 1.75(h) in(25.4 x 24.59 x 4.45 cm)(1U height)

Frequency

50/60 Hz

Idle power

5.3 W

MAC Address Table Size

16000 entries

Maximum heat dissipation

29 BTU/hr (30.6 kJ/hr), (switch only: 29 BTU/hr; combined switch + max. PoE devices: 239 BTU/hr)

Maximum power rating

70.2 W

Nonoperating/Storagerelative humidity

15% to 90% @ 149°F (65°C),noncondensing

Nonoperating/Storagetemperature

-40°F to 158°F (-40°C to 70°C)

Notes

Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports.

Operating relativehumidity

15% to 95% @ 104°F (40°C),noncondensing

Operating temperature

32°F to 113°F (0°C to 45°C)

PoE power

67 W PoE

Switching capacity

5.6 Gbps

Throughput

up to 4.1 Mpps (64-byte packets)
