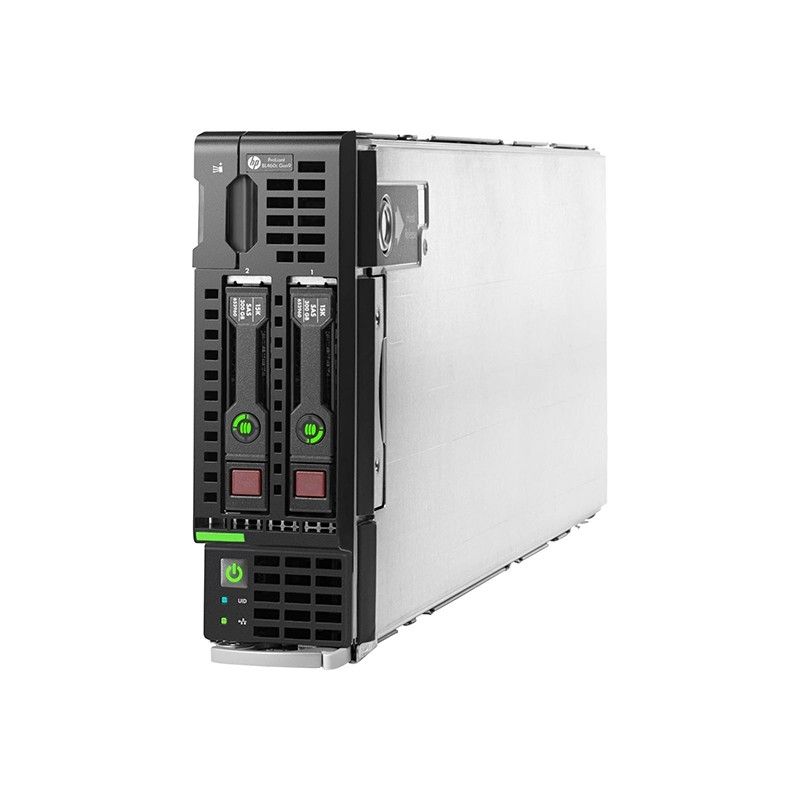

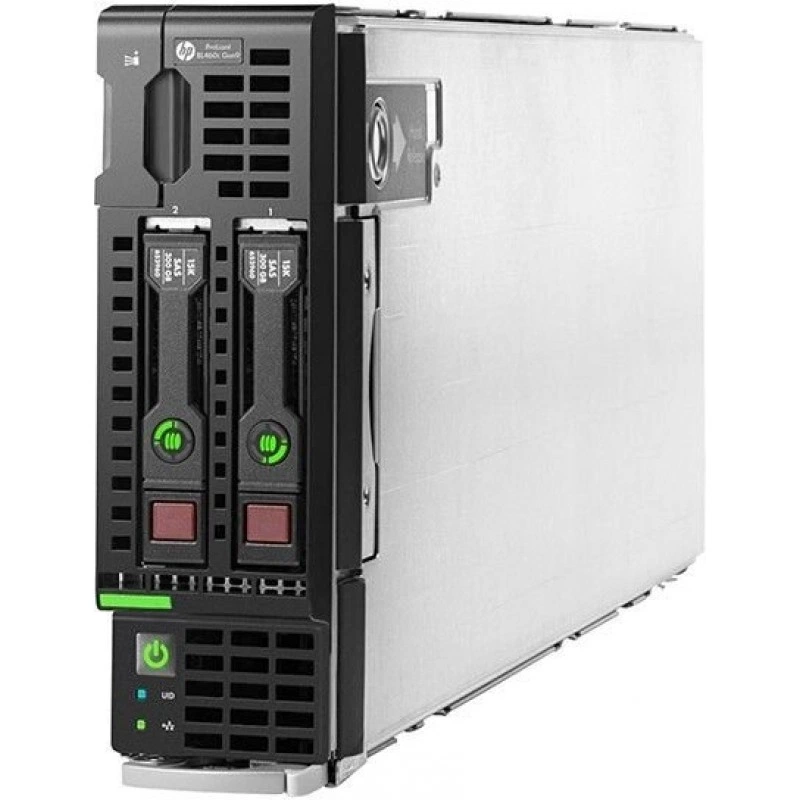

863442-B21 - блейд-сервер HPE ProLiant BL460c

Audio Output Details

Speaker Type

None

Bay Provided

Form Factor

2.5 SFF

Free Qty

2

Total Qty

2

Cabinet

Chassis Built-in Devices

LED panel

Card Reader

Supported Flash Memory Cards

microSDHC

Type

Card reader

Chassis

Form Factor

Blade

Hot-Swap Bays Qty

2

Manufacturer Form Factor

Blade

Server Storage Bays

Hot-swap

Server Swappable Drive Form Factor

2.5

Server Swappable Drive Form Factor (metric)

6.4 cm

Server Swappable Drive Interface

SATA

Dimensions & Weight

Depth

20.4 in

Height

7.1 in

Weight

10.47 lbs

Width

2.2 in

Display

Type

None.

Environmental Parameters

Humidity Range Operating

10 - 90% (non-condensing)

Max Operating Temperature

95 °F

Min Operating Temperature

50 °F

Expansion Bays

Form Factor (metric)

6.4 cm SFF

Type

Hot-swap

Expansion Slots

Slot Comments

X16 mode

Type

PCIe 3.0 x16

Hard Drive

Type

No HDD

Hard Drive (2nd)

Type

None

Hard Drive (3rd)

Type

None

Hard Drive (4th)

Type

None

Header

Brand

HPE

Compatibility

PC

Manufacturer

HP CTO Server Avnet

Model

BL460c Gen10

Packaged Quantity

1

Product Line

HPE ProLiant

Interface Provided

Comment

HPE iLO 5 to Onboard Administrator link

Connector Type

RJ-45

Location

1 internal

Qty

1

Type

LAN

Mainboard

Chipset Type

Intel C621

Processor Socket

Socket P

Miscellaneous

Color Category

Black

Compliant Standards

ACPI 6.1

Pricing Type

CTO

Networking

Data Link Protocol

Gigabit Ethernet

Interface Type

FlexibleLOM

Remote Management Controller

Integrated Lights-Out 4

Optical Storage

Drive Type

No optical drive

Type

None

Optical Storage (2nd)

Drive Type

No optical drive

Type

None

Printer

Type

None

Processor

Type

No CPU

Upgradability

Upgradable

RAM

Empty Slots

16

Form Factor

DIMM 288-pin

Installed Size

0 GB

Max Supported Size

1.5 TB

Memory Specification Compliance

PC4-20800

Memory Speed

2400 MHz

Rated Memory Speed

2666 MHz

Slots Qty

16

Technology

DDR4 SDRAM

RAM Supported

Max Size

512 GB

Registered or Buffered

Registered

Type

PC4-20800

Service

Support Details Full Contract Period

3 years

Support Details Location

On-site

Support Details Service Included

Parts and labor

Support Details Type

Limited warranty

Service & Support

On-Site Warranty

On-site

Type

3 years warranty

Service & Support Details

Response Time

Next business day

Slot Provided

Free Qty

2

Total Qty

2

Software

Type

HPE Server UEFI

Storage Controller

Channel Qty

4

Installed Qty

1

Interface Type

Serial ATA-600

Storage Controller Name

HPE Smart Array S100i SR Software

Type

Serial ATA

Storage Removable

Type

None

System

Hard Drive Capacity

0 GB

OS Certified

CentOS, Citrix XenServer 7.0, Citrix XenServer 7.1, Microsoft Windows Server 2012 R2 Datacenter, Microsoft Windows Server 2012 R2 Standard, Microsoft Windows Server 2012 R2 with Hyper-V, Microsoft Windows Server 2012 with Hyper-V, Microsoft Windows Server 2016, Microsoft Windows Server 2016 with Hyper-V, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 12 SP2, SuSE Linux Enterprise Server 12 SP3, VMware vSphere 6.5

Type

Server

Video Memory

Installed Size

16 MB

Video Output

Graphics Processor Series

Matrox G200

Graphics Processor Vendor

Matrox G200eH
