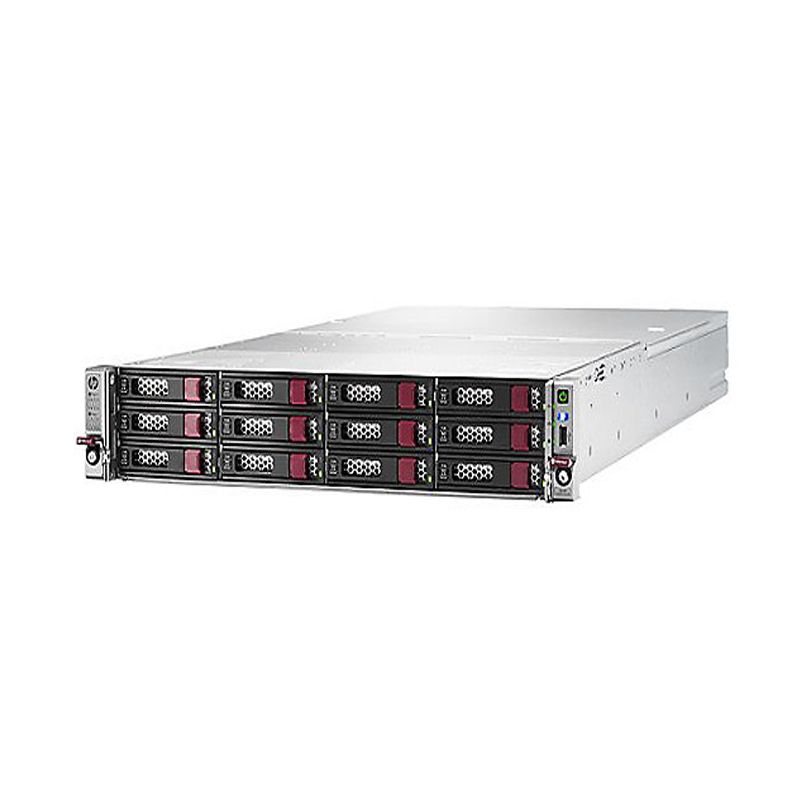

849879-B21 - Серверы HPE Apollo 4200

Cache Memory

Cache Per Processor

20 MB

Installed Size

20 MB

Dimensions & Weight

Depth

32 in

Height

3.4 in

Weight

46.74 lbs

Width

17.6 in

Environmental Parameters

Humidity Range Operating

8 - 90%

Max Operating Temperature

95 °F

Min Operating Temperature

50 °F

Expansion / Connectivity

Bays

48 (total) / 48 (free) x hot-swap 2.5 SFF

Interfaces

1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal) ¦ 2 x LAN (Gigabit Ethernet)

Slots

2 (total) / 1 (free) x CPU ¦ 8 (total) / 7 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)

General

Embedded Security

Trusted Platform Module (TPM 1.2) Security Chip

Hot-Swap Bays Qty

48

Localization

Worldwide

Product Form Factor

Rack-mountable - 2U

Server Scalability

2-way

Type

Server

Graphics Controller

Graphics Processor

Matrox G200eH2

Video Interfaces

VGA

Hard Drive

Type

No HDD

Manufacturer Warranty

Service & Support

Limited warranty - parts - 3 years ¦ Limited warranty - parts and labor - 1 year - on-site - response time: next business day

Miscellaneous

Compliant Standards

ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Monitor

Monitor Type

None.

Networking

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet Controller

HP 361i

Ethernet Ports

2 x Gigabit Ethernet

Features

Wake on LAN (WoL), PXE support

Remote Management Controller

Integrated Lights-Out 4

Operating System / Software

OS Certified

SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Canonical Ubuntu

Power

80 PLUS Certification

80 PLUS Platinum

Device Type

Power supply

Nominal Voltage

AC 100/230 V (50/60 Hz)

Power Provided

1400 Watt

Processor / Chipset

CPU

Intel Xeon E5-2620V4 / 2.1 GHz

CPU Qty

1

CPU Socket

LGA2011-v3 Socket

CPU Upgradability

Upgradable

Max CPU Qty

2

Max Turbo Speed

3 GHz

Number of Cores

8-core

Processor Main Features

Hyper-Threading Technology, Intel Turbo Boost Technology 2

RAM

Configuration Features

1 x 16 GB

Effective Memory Speed

1866 MHz

Features

Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory

Form Factor

DIMM 288-pin

Installed Size

16 GB / 512 GB (max)

Memory Specification Compliance

PC4-17000

RAM Supported

512 GB registered ¦ 512 GB Load-Reduced

Rated Memory Speed

2133 MHz

Technology

DDR4 SDRAM - Advanced ECC

Storage Controller

Buffer Size

4 GB

Channel Qty

16

Controller Interface Type

SATA 6Gb/s / SAS 12Gb/s

RAID Level

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Storage Controller Name

HP Smart Array P840ar with 4GB FBWC

Type

1 x RAID - PCIe 3.0 x8

Storage Controller (2nd)

Channel Qty

6

Controller Interface Type

SATA 6Gb/s

RAID Level

RAID 0, RAID 1, RAID 5, RAID 10

Storage Controller Name

HP Dynamic Smart Array B140i

Type

1 x RAID
