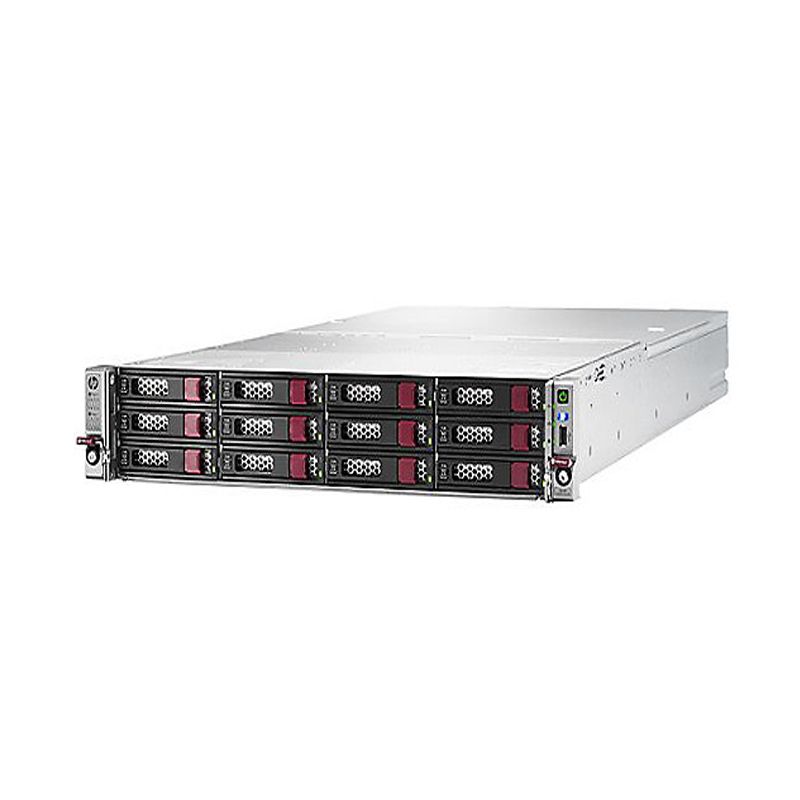

849878-B21 - Серверы HPE Apollo 4200

Audio Input

Type

None

Bay Provided

Form Factor

3.5 LFF

Free Qty

28

Total Qty

28

Cache Memory

Installed Size

20 MB

Per Processor Size

20 MB

Chassis

Form Factor

Rack-mountable

Hot-Swap Bays Qty

28

Manufacturer Form Factor

Rack-mountable

Server Storage Bays

Hot-swap

Server Swappable Drive Form Factor

3.5

Server Swappable Drive Form Factor (metric)

8.9 cm

Server Swappable Drive Interface

SAS

Dimensions & Weight

Depth

32 in

Height

3.4 in

Weight

51.15 lbs

Width

17.6 in

Display

Type

None.

Environmental Parameters

Humidity Range Operating

8 - 90%

Max Operating Temperature

95 °F

Min Operating Temperature

50 °F

Expansion Bays

Form Factor (metric)

8.9 cm LFF

Type

Hot-swap

Expansion Slots

Size

Low-profile

Type

PCIe 3.0 x8

Hard Drive

Type

No HDD

Hard Drive (2nd)

Type

None

Hard Drive (3rd)

Type

None

Hard Drive (4th)

Type

None

Header

Brand

HPE

Compatibility

PC

Country Kits

Worldwide

Manufacturer

HP CTO Server Avnet

Model

4200 Gen9

Packaged Quantity

1

Product Line

HPE Apollo

Interface Provided

Location

1 in front

Qty

3

Type

USB 2.0

Mainboard

Processor Socket

LGA2011-v3 Socket

Miscellaneous

Color Category

Silver

Compliant Standards

ACPI 2.0b, ASHRAE, CISPR 22, CNS 13438, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, FCC CFR47 Part 15, FCC Class A certified, GB 9254, ICES-003, IEC 60950-1, WEEE

Height (Rack Units)

2

Networking

Compliant Standards

IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet Controller(s)

HP 361i

Ethernet Ports

2 x Gigabit Ethernet

Features

PXE support, Wake on LAN (WoL)

Remote Management Controller

Integrated Lights-Out 4

Optical Storage

Drive Type

No optical drive

Type

None

Optical Storage (2nd)

Drive Type

No optical drive

Type

None

Power Device

80 PLUS Certification

80 PLUS Platinum

Frequency Required

50/60 Hz

Nominal Voltage

AC 100/230 V

Power Provided

1400 Watt

Type

Power supply

Printer

Type

None

Processor

Clock Speed

2.1 GHz

Installed Qty

1

Manufacturer

Intel

Max Supported Qty

2

Max Turbo Speed

3 GHz

Number of Cores

8-core

Processor Main Features

Hyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number

E5-2620V4

Server Scalability

2-way

Type

Xeon

Upgradability

Upgradable

RAM

Configuration Features

1 x 16 GB

Data Integrity Check

Advanced ECC

Empty Slots

7

Features

HP SmartMemory, Online Spare Memory, Quad channel memory architecture, Registered

Form Factor

DIMM 288-pin

Installed Size

16 GB

Max Supported Size

512 GB

Memory Specification Compliance

PC4-17000

Memory Speed

1866 MHz

Rated Memory Speed

2133 MHz

Slots Qty

8

Technology

DDR4 SDRAM

RAM Supported

Max Size

512 GB

Registered or Buffered

Load-Reduced

Service

Support Details Full Contract Period

1 year

Support Details Location

On-site

Support Details Service Included

Parts and labor

Support Details Type

Limited warranty

Service & Support

On-Site Warranty

On-site

On-Site Warranty Comment

1st year only

Type

3 years warranty

Service & Support Details

Response Time

Next business day

Slot Provided

Free Qty

7

Total Qty

8

Storage Controller

Buffer Size

4 GB

Bus Type

PCI Express 3.0 x8

Channel Qty

16

Installed Qty

1

Interface Type

Serial ATA-600 / SAS 3.0

RAID Level

RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60

Storage Controller Name

HP Smart Array P840ar with 4GB FBWC

Type

RAID

Storage Controller (2nd)

Channel Qty

6

Controller Interface Type

Serial ATA-600

Installed Qty

1

RAID Level

RAID 0, RAID 1, RAID 10, RAID 5

Storage Controller Name

HP Dynamic Smart Array B140i

Type

RAID

Storage Removable

Type

None

System

Embedded Security

Trusted Platform Module (TPM 1.2) Security Chip

Hard Drive Capacity

0 GB

OS Certified

Canonical Ubuntu, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server

Type

Server

Video Output

Graphics Processor Series

Matrox G200

Graphics Processor Vendor

Matrox G200eH2

Video Interfaces

VGA
