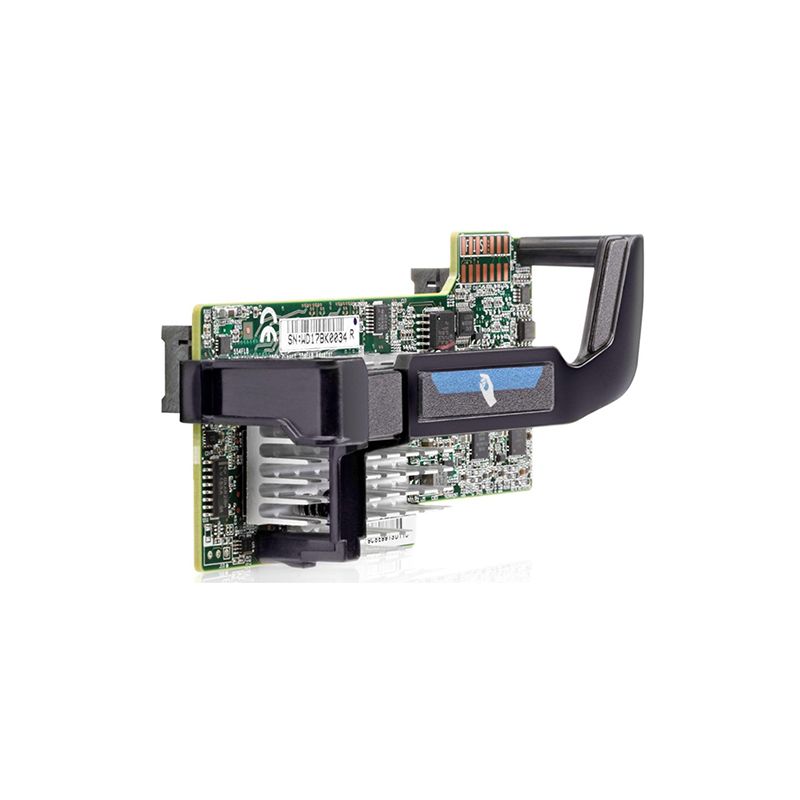

700066-B21 — HPE FlexFabric 20Gb 2P 630FLB FIO Adptr

Environmental Parameters

Humidity Range Operating

10 - 90% (non-condensing)

Max Operating Temperature

131 °F

Min Operating Temperature

32 °F

Expansion Slots

Type

FlexibleLOM

Header

Brand

HPE

Compatibility

PC, Unix

Manufacturer

HP CTO Server Avnet

Model

630FLB

Packaged Quantity

1

Product Line

HPE FlexFabric

Miscellaneous

Compliant Standards

BSMI, BSMI CNS 13438 Class A, EN 61000-3-2:2006, EN 61000-3-2:2008, EN55022:2006 Class A, EN55024, FCC Class A certified, FCC Part 15, ICES-003, KN22 Class A, KN24, RoHS 6/6, UL, VCCI V-3 Class A ITE

Pricing Type

Factory integrated

Networking

Compliant Standards

IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3p, IEEE 802.3x

Connectivity Technology

Wired

Data Link Protocol

20 Gigabit Ethernet

Data Transfer Rate

20 Gbps

Features

Accelerated iSCSI, Extended Message-Signaled Interrupts (MSI-X), HP Virtual Connect FlexFabric technology, iSCSI boot, Jumbo Frames support, Large Send Offload (LSO), PXE support, Quality of Service (QoS), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Offload Engine (TOE), TCP Segmentation Offload (TSO), TCP/IP checksum offload, UDP/IP checksum offload, VLAN support

Interface Type

PCI Express 2.0 x8

Network Transport Protocol

TCP/IP, UDP/IP

Remote Management Protocol

SNMP

Type

Network adapter

Ports

Qty

2

Type

20 Gigabit Ethernet

Power Device

Power Consumption Operational

12 Watt

Processor

Installed Qty

1

Manufacturer

Qlogic

Type

BCM57840S

Service

Support Details Full Contract Period

1 year

Support Details Type

Limited warranty

Service & Support

Type

1 year warranty

Slot Provided

Total Qty

1

System Requirements

Min Operating System

Citrix XenServer 6.1, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Oracle Solaris 10 update 10, Oracle Solaris x64 11, Red Hat Enterprise Linux 5.10, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.4, Red Hat Enterprise Linux 6.5, SuSE Linux Enterprise Server 11 SP2, SuSE Linux Enterprise Server 11 SP3, VMware ESXi 5.0 update 3, VMware ESXi 5.1 update 2, VMware vSphere 5.5
