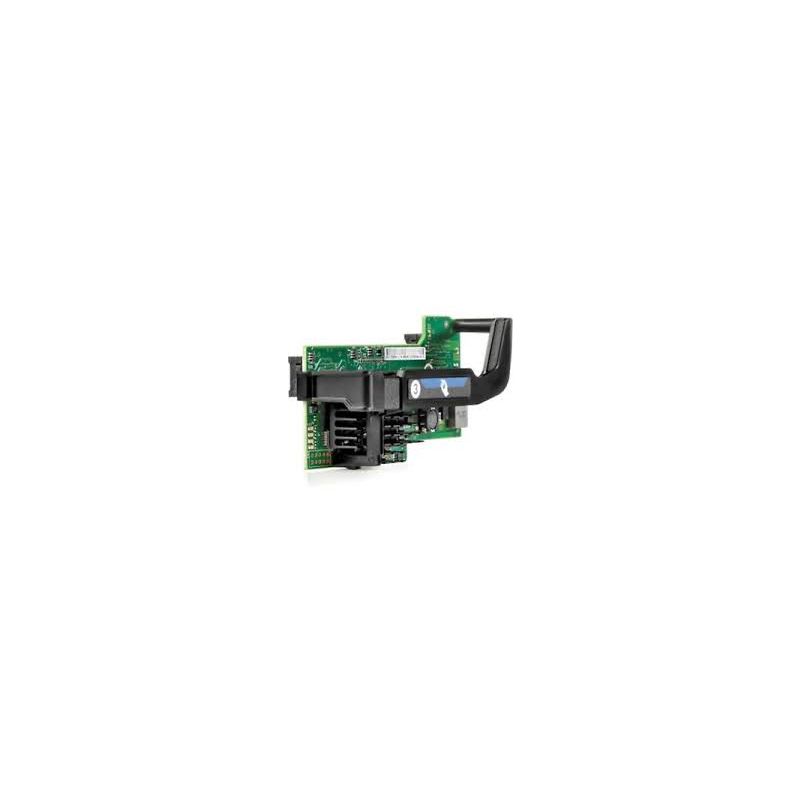

684214-B21 - HPE Ethernet 10Gb 2P 560FLB FIO Adptr

Environmental Parameters

Humidity Range Operating

10 - 90% (non-condensing)

Max Operating Temperature

131 °F

Min Operating Temperature

32 °F

Header

Brand

HPE

Compatibility

PC

Manufacturer

HP CTO Server Avnet

Model

560FLB

Packaged Quantity

1

Product Line

HPE

Interface Required

Type

None

Miscellaneous

Compliant Standards

AS/NZS, BSMI, BSMI CNS 13438 Class A, FCC Part 15 A, RoHS 6/6, UL, VCCI V-3 Class A ITE, WEEE

Pricing Type

Factory integrated

Networking

Compliant Standards

IEEE 802.1as, IEEE 802.1au, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3ap, IEEE 802.3p, IEEE 802.3x

Connectivity Technology

Wired

Data Link Protocol

10 Gigabit Ethernet, Gigabit Ethernet

Data Transfer Rate

10 Gbps

Features

Jumbo Frames support, Large Send Offload (LSO), PXE support, Receive Side Scaling (RSS), Teaming support, Wake on LAN (WOL)

Interface Type

PCI Express 2.0 x8

PCI Specification Revision

PCIe 2.0

Ports Qty

2

Remote Management Protocol

SNMP

Type

Network adapter

Power Device

Type

None

Processor

Installed Qty

1

Manufacturer

Intel

Slot Required

Total Qty

1

Type

FlexibleLOM

System Requirements

Min Operating System

Citrix XenServer 6.0, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, Red Hat Enterprise Linux 6.1, SuSE Linux Enterprise Server for x86/AMD64/Intel EM64T
